DSLogic U2basic DSlogic Plus Logikanalysator, 16 Kanäle, 400 m Abtastung, USB-basierter Debugging-Logikanalysator

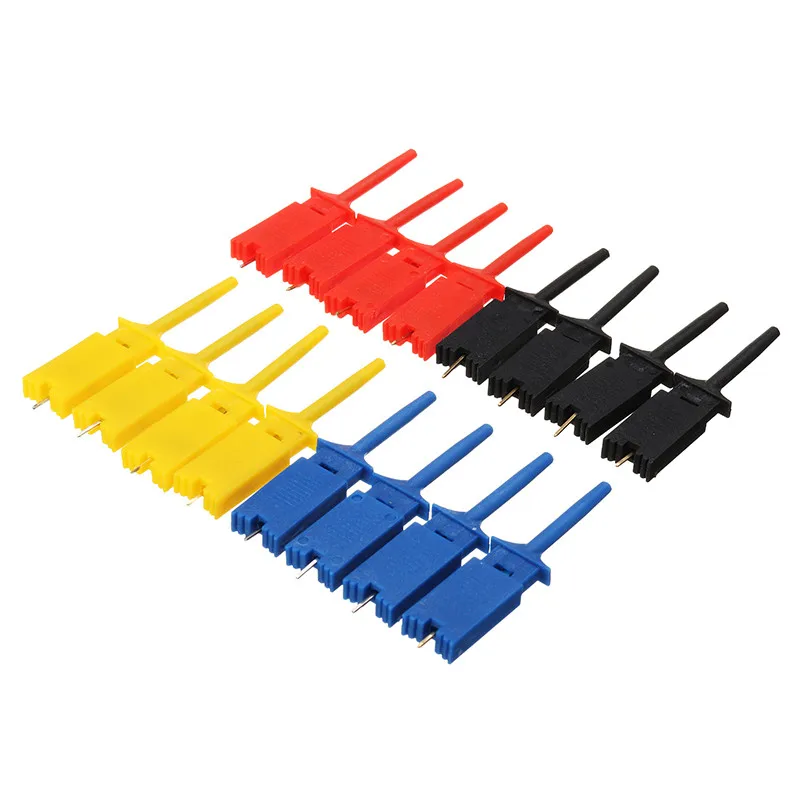

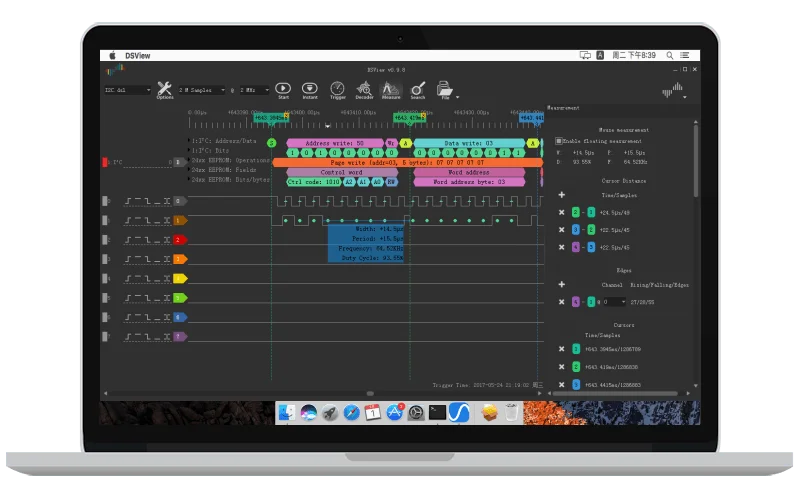

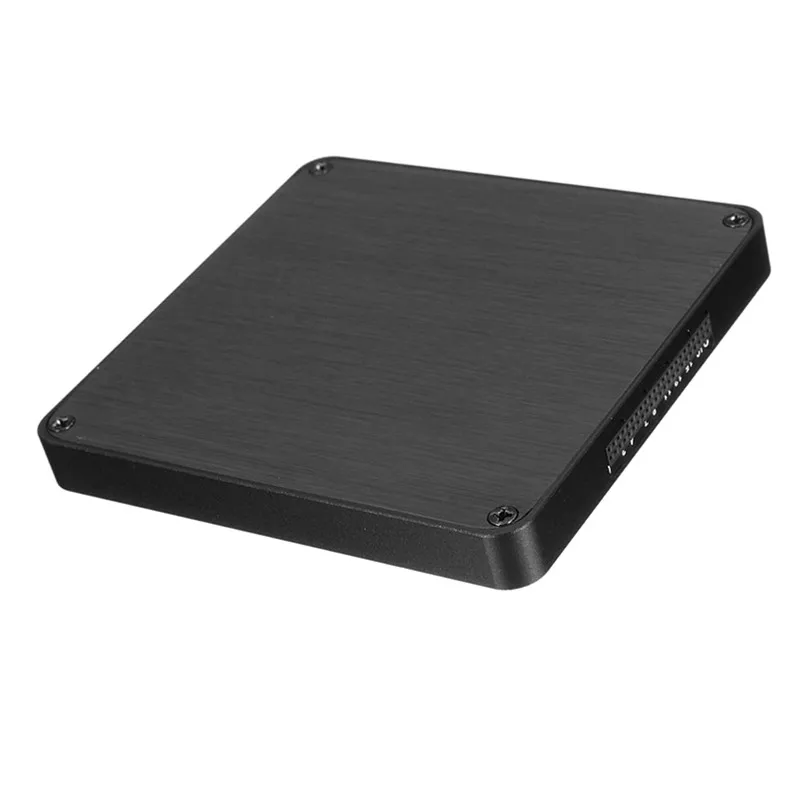

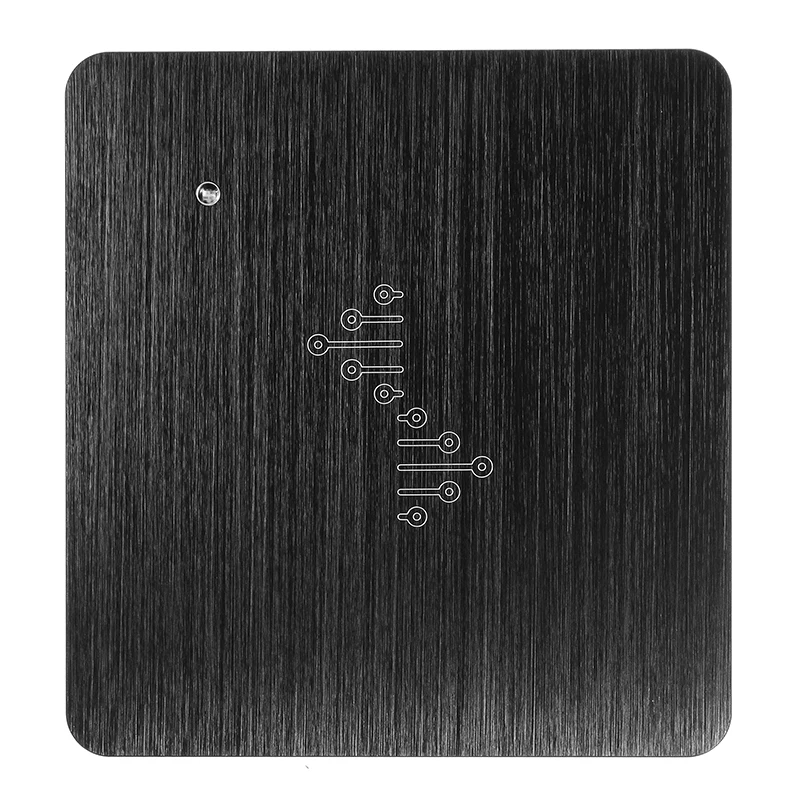

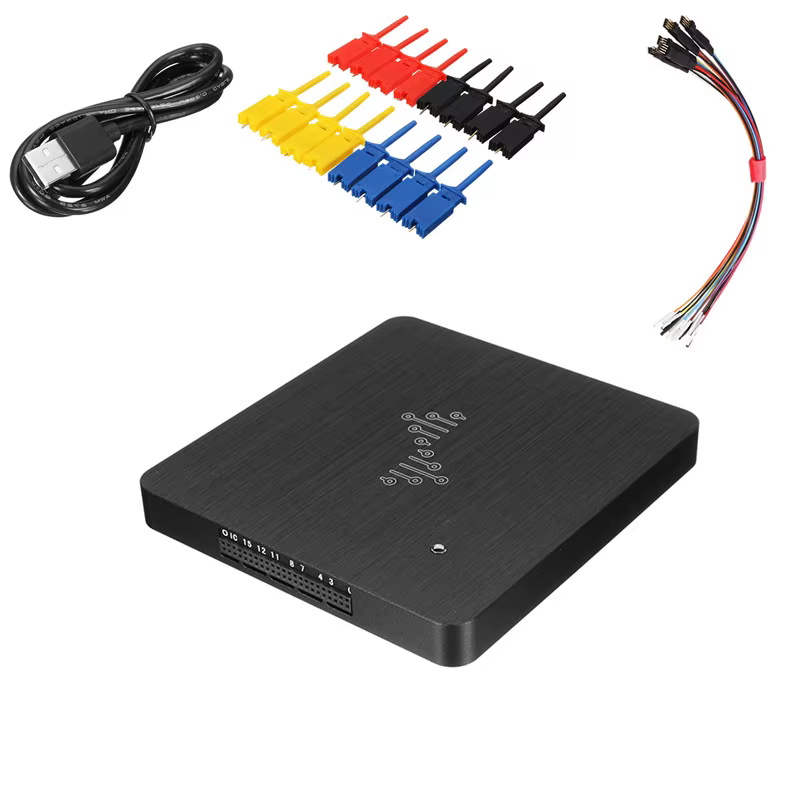

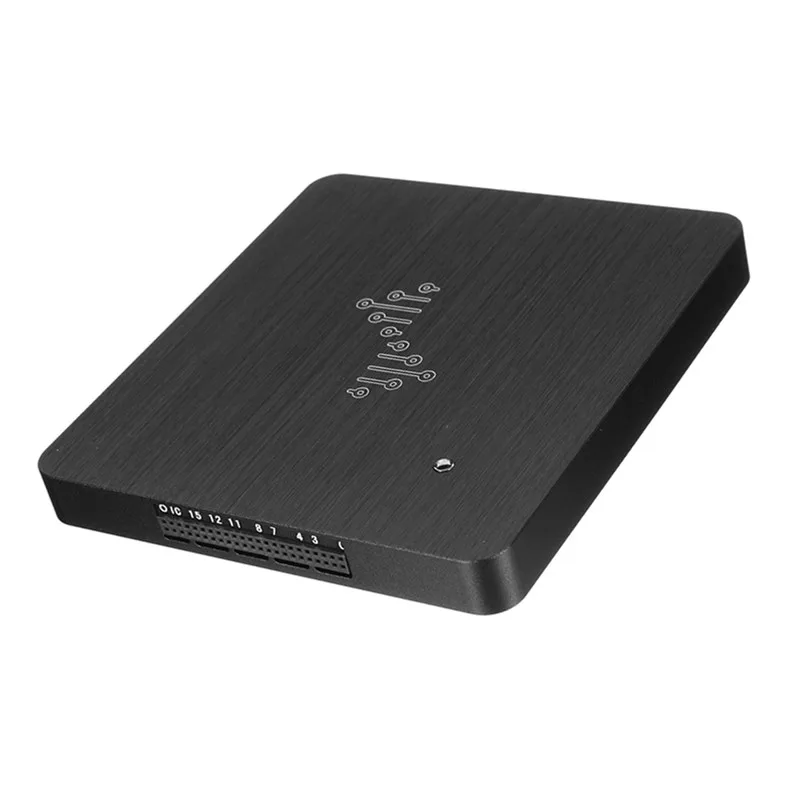

Parameter of DSlogic Plus: Key Features 16 digital channels Up to 400MHz sample rate Up to 256Mbits hardware memory Up to 16G sample depth (stream mode) Adjustable Threshold (0.1V Step) Shielded fly wires Unibody aluminum case 3-year warranty Connectivity USB Type-C interface (USB 2.0 device port) 27mm dupont female connector (Host device) 54mm dupont female connector (Fly wires) Power Source Power source voltage: 5VDC±5% Power consumption: 2 W maximum Input output ports Direction Descriptions Protected Voltage Range USB 2.0 port InOut Connect to host computer 4.75v ~ 5.25v CH0 ~ CH15 Input Connect to under test signals -30v ~ 30v (with fly wires) CK Input Clock input at state sample mode 0v ~ 3.3v TI Input External trigger signal input 0v ~ 3.3v TO Output External trigger signal output — Designed to make your work enjoyable DSLogic Plus is an USB-based logic analyzer, which has a portable size (79x74x9mm), but powerful performance (up to 400MHz sample rate). With the easy-to-use and cross platform software, DSView, you can use your favorite computer to debug and analysis your circuits, observe the digital wave and decoder various protocols at anywhere and anytime. Technical Specifications Input Voltage and Thresholds Operation voltage range: -0.9v ~ 6v Threshold voltage: 0v ~ 5v (0.1v step) Work with most of logic voltage level (such as: 5v, 3.3v, 2.5v, 1.8v, 1.5v, 1.2v, 1.0v, etc.) ESD protected Input Impedance 250KΩ // ~10pF Max Sample Rates Buffer mode: 400MHz when using 4 channels, 200MHz when using 8 channels, 100MHz when using 16 channels Stream mode: 100MHz when using 3 channels, 50MHz when using 6 channels, 25MHz when using 12 channels, 20MHz when using 16 channels Max Sample Depth Buffer mode (without RLE compression): 256M Buffer mode (with RLE compression): 16G Stream mode: 16G Error/Accuracy Minimum acquis
