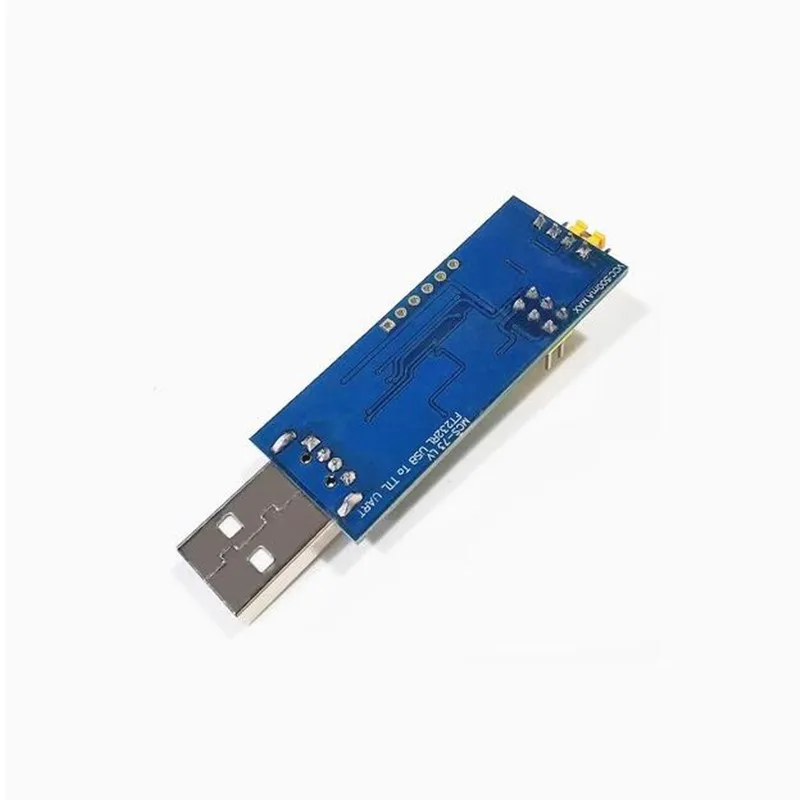

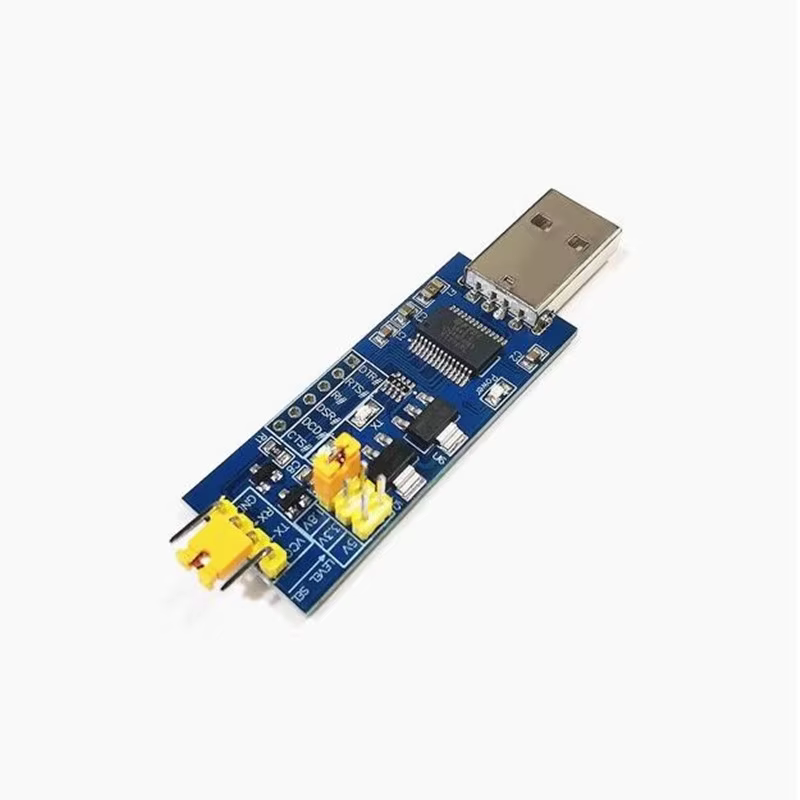

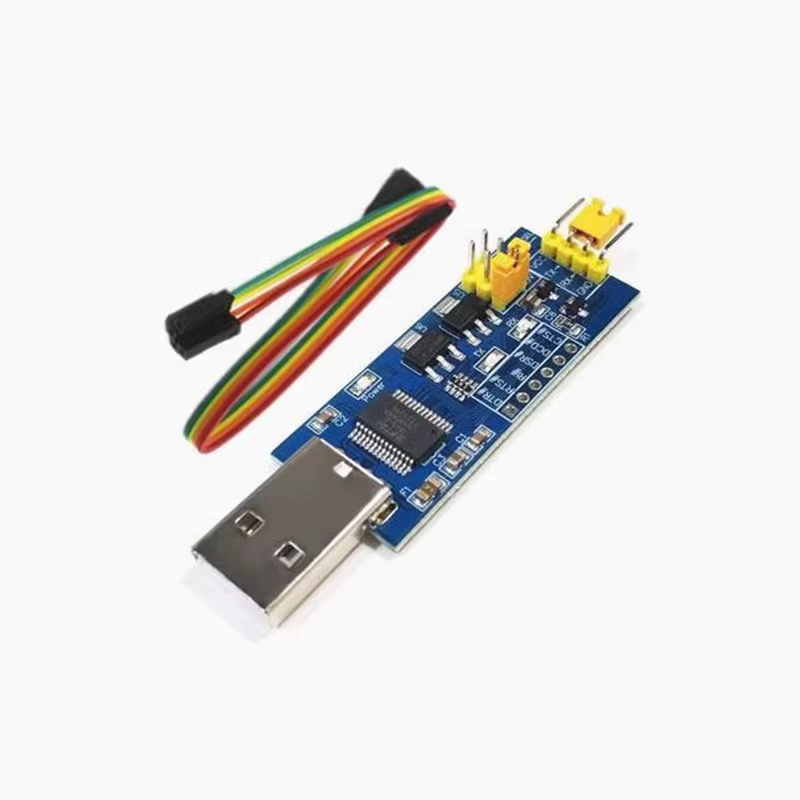

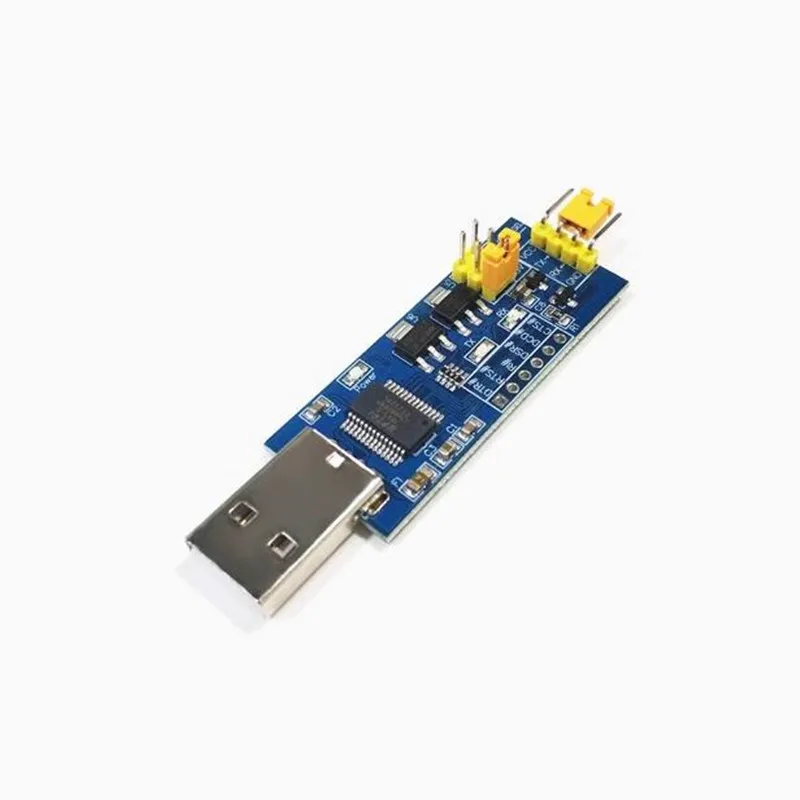

Product details: USB to TTL Converter USB to UART Module 5V/3.3V/1.8V FT232RL Code Programmer Downloader Suitable for Industrial Occasions 1.Description:  It is a USB to TTL serial port module.The excellent performance of FT232RL is very suitable for high-demand industrial occasions.It realizes USB to UART serial port.This module can switch at 5V/3.3V/1.8V level,and provides up to 500mA VCC power output. 2.Feature:  1).It uses FT232RL main control chip,which is fast and stable.  2).The serial port module supports Windows/Mac/Linux 32/64 bit operating system.  3).The maximum speed of the FT232R serial port module can reach 3Mbps (3 times of 921600),and it supports standard baud rates such as 2400/9600/115200/921600.  4).The power supply VCC and signal level can be switched at 5V/3.3V/1.8V,and support different levels of signal and power supply.  5).The serial port module has an independent LDO,and the maximum output current can reach 500mA.  6).The USB to TTL serial port module has three LED indicators for integrated power supply,sending and receiving.  7).The serial port module integrates a 500mA fuse,which is automatically disconnected when overcurrent/short circuit occurs,effectively protecting the USB safety.  8).The USB to TTL module leads out all available IOs,and the CTS/RTS/DTR/DSR/RI/DCD pins (levels can be switched) are convenient for hardware flow control.  9).The USB to TTL module integrates a protection diode,and the occasional abnormal voltage on the signal line will not damage the module.  10).The volume is only 20*50mm,which only occupies the width of one USB interface,and does not affect the insertion of other devices. 3.Parameter:  1).Product Name:USB to TTL Serial Port Module  2).Input Interface:USB interface  3).Output Interface:TTL  4).Input Signal:1.8V/3.3V/5V  5).Baud Rate:2400/9600/115200/921600  6).Maximum Speed:3Mbps  7).Output Current:500mA (Max)  8).Work Temperature:-25℃~85℃  9).Work Humidity:5%~95%RH  10).Size:65*2
