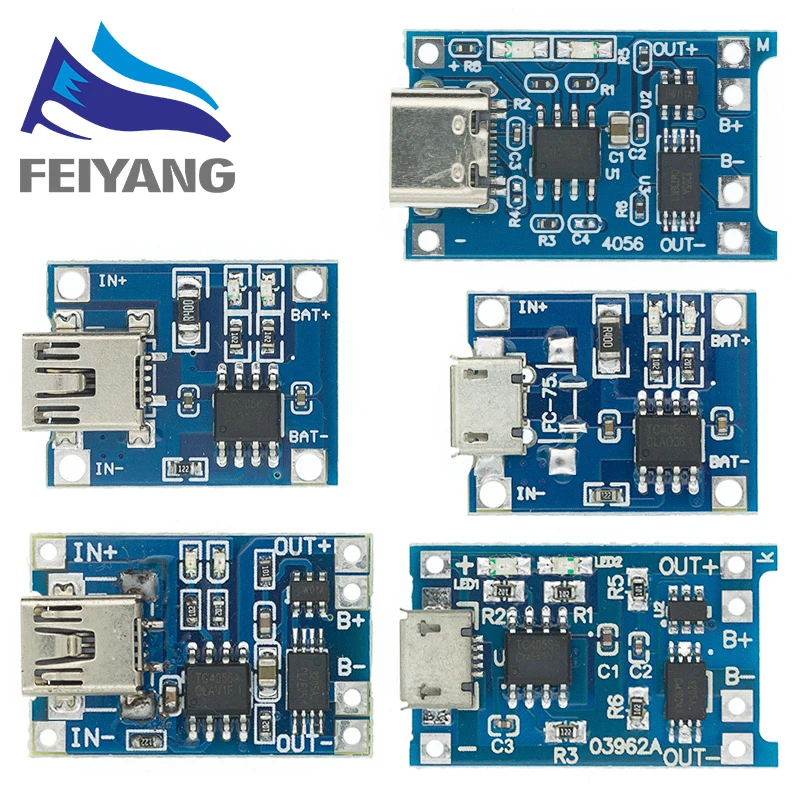

5V 1A Micro/Type-C/Mini 18650 TP4056 Lithium-Akku-Lademodul Ladeplatte mit Schutzfunktionen und Doppelfunktionen für Li-Ionen

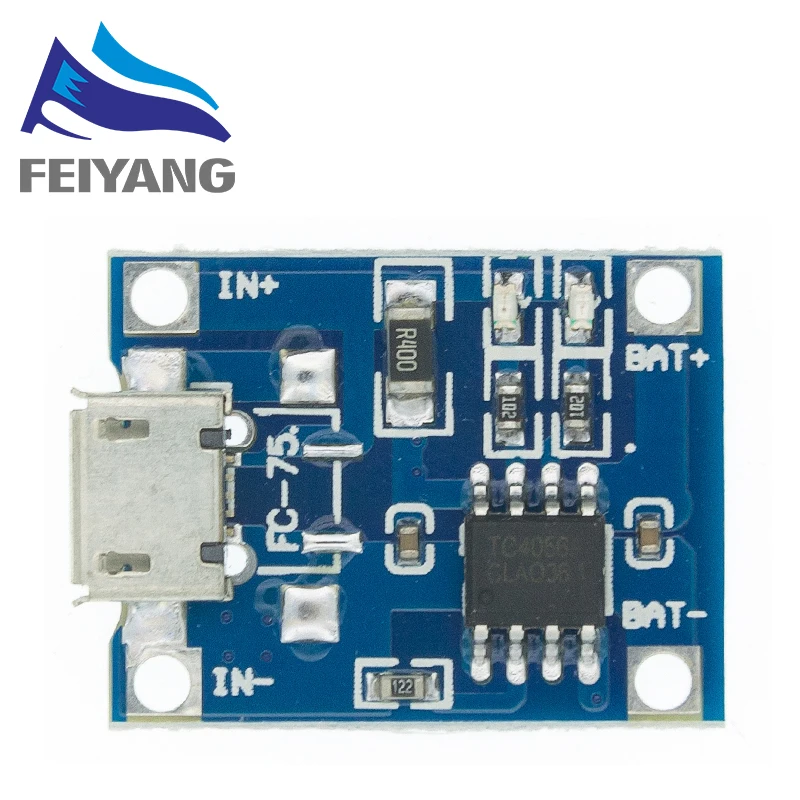

64474 Click the collection to become our VIP lover 100% brand new and high quality Charge module- Linear charging. Current- 1A adjustable. Charge precision- 1.5%. Input voltage- 4.5V-5.5V. Full charge voltage- 4.2V. Led indicator- red is charging Green is full charged. Input interface- micro USB. Work temperature- -10° to +85°. Inversed polarity- NO. Size- small to 25X19X10mm. NOTE: 1. Ampere meter can only be connected to 5v input end of the module. 2. It is better that the charging current is 37% of the battery capacity. If you charge to the battery of 1000mAH, current of 400 is enough. 3. The connection wire should not be too thick. 4. Make sure the connect point is good. 5. If the input voltage is too high, like 5.2v, the current will be less than 1000mA, it is normal. It is protection function, auto-substract the charging current to avoid burn damage to chip. 6. NO Reveral polarity. Package Included: 5V Micro USB 1A 18650 Lithium Battery Charging Board Charger Module The charge should disconnect the load OUT terminal on the positive and negative can not be wrong, please according to specifications, otherwise it will damage directly. The first time you access the battery, it may no voltage between the output OUT + and OUT-, then access 5V voltage charge your energy can activate the protection circuit, and the battery from the B + B-, then draw a line on the short open also need recharged to activate the protection circuit. Note that the charger must be able to output 1A or more to do when using a mobile phone charger input, or may not charge + MICRO USB female and next - pads for the power input, access 5V. B + positive then the lithium battery, B- then negative lithium batteries. OUT + and OUT- connected to the load, such as positive and negative electrodes connected mobile booster plate or
