USV-Unterbrechungsfreie Stromversorgungsplatine für Raspberry Pi DC9-24V Eingang 5V 3A Ausgang Power-Off-Konservierung USV-Spannungsschutz

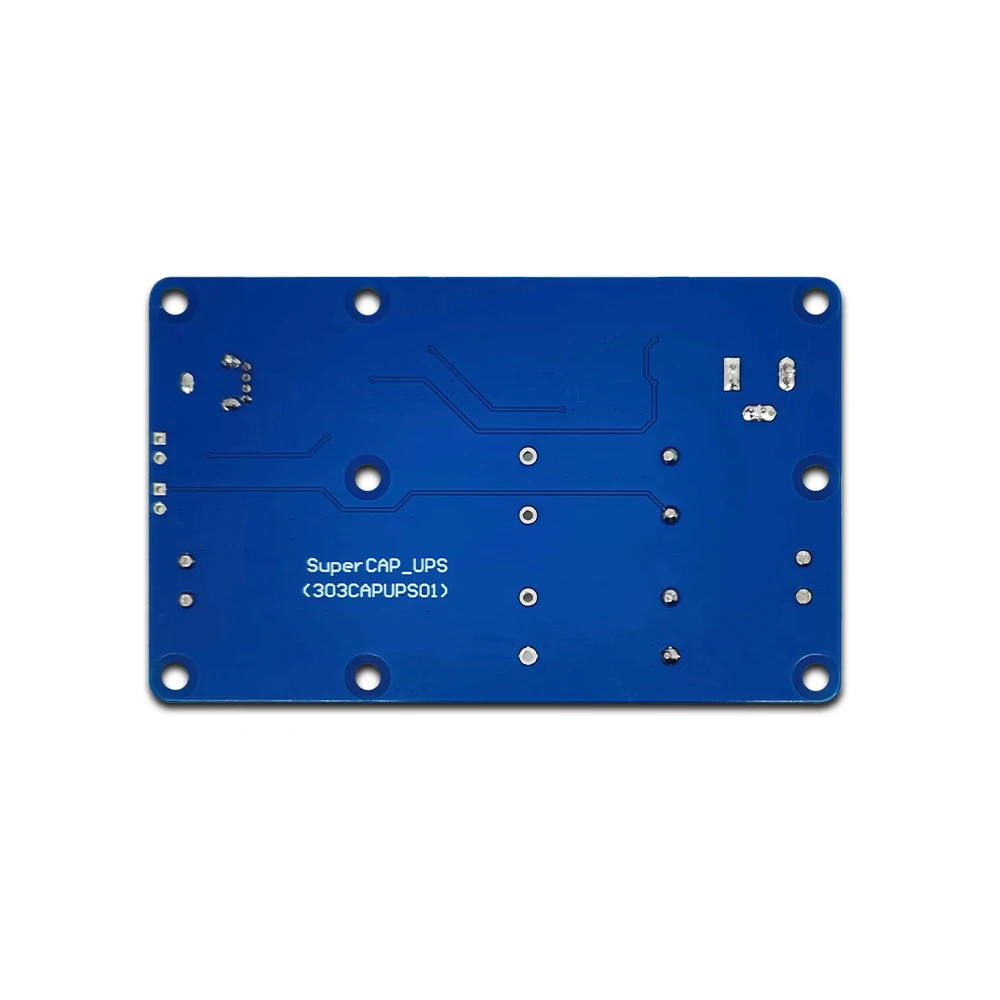

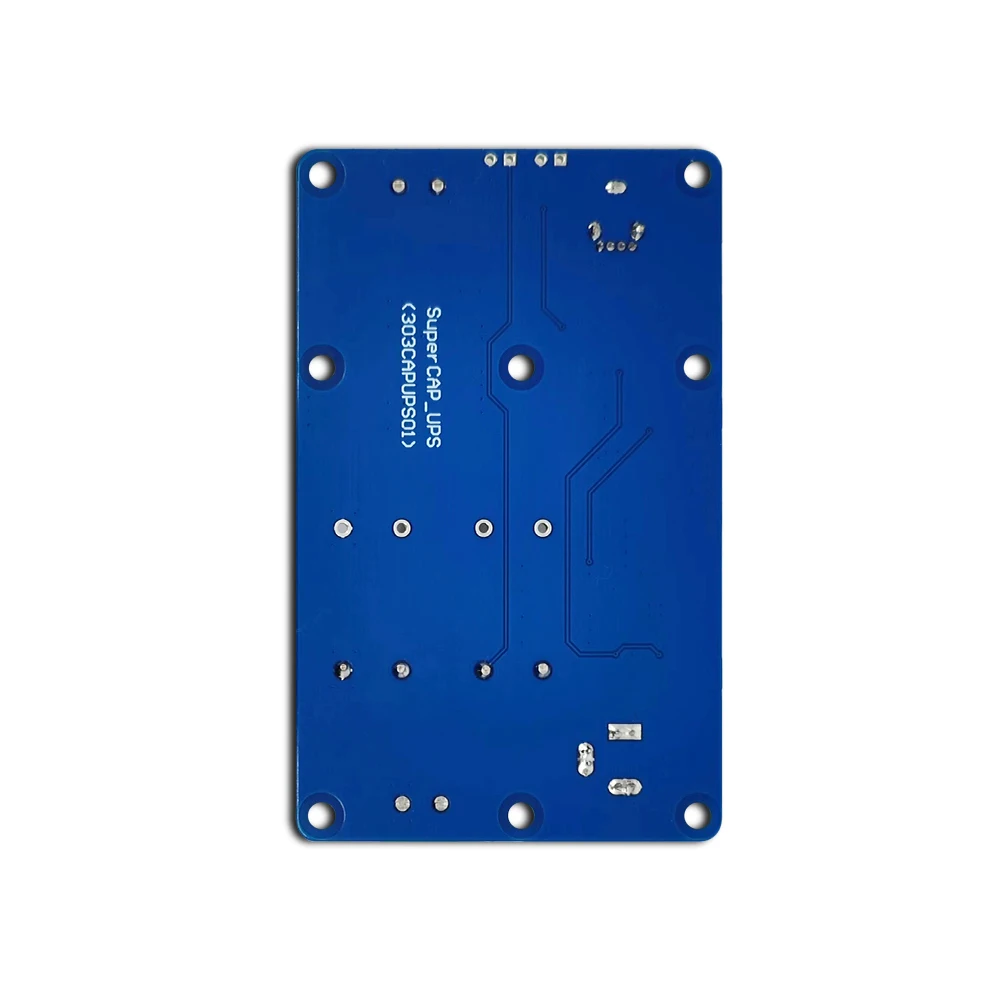

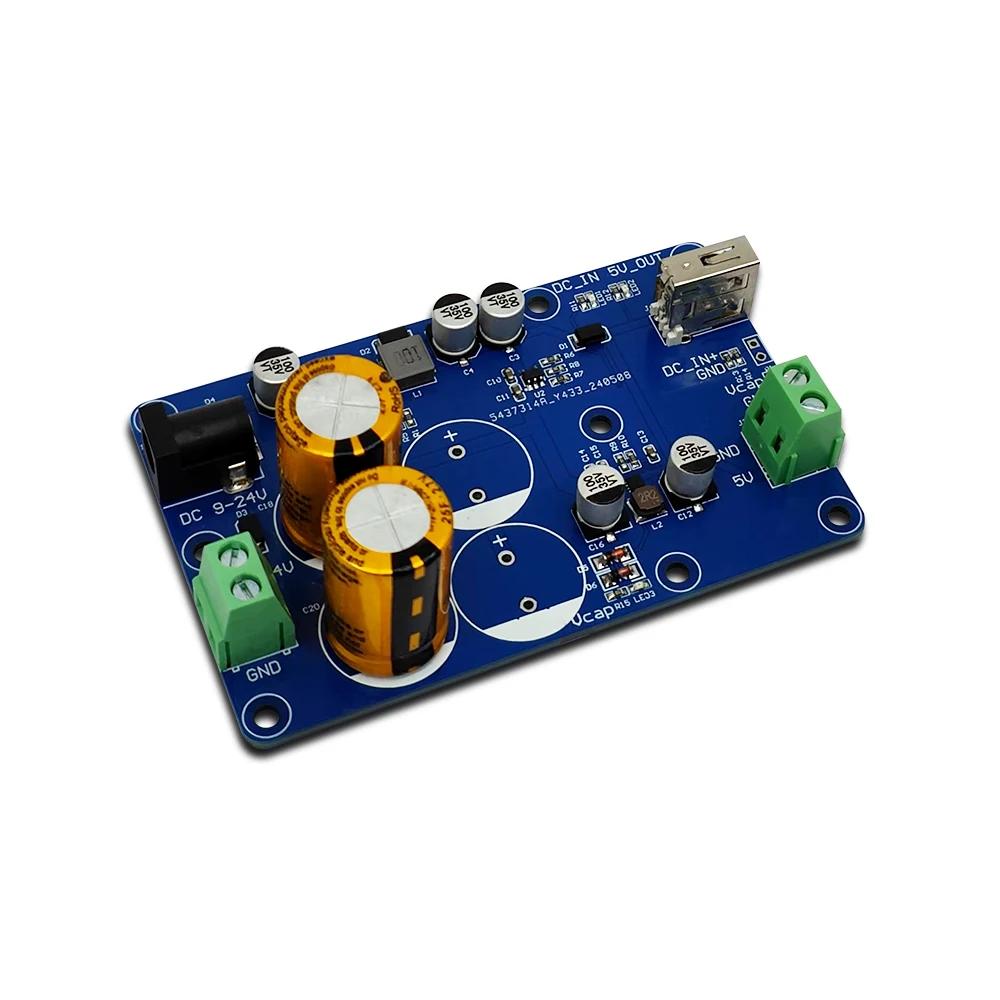

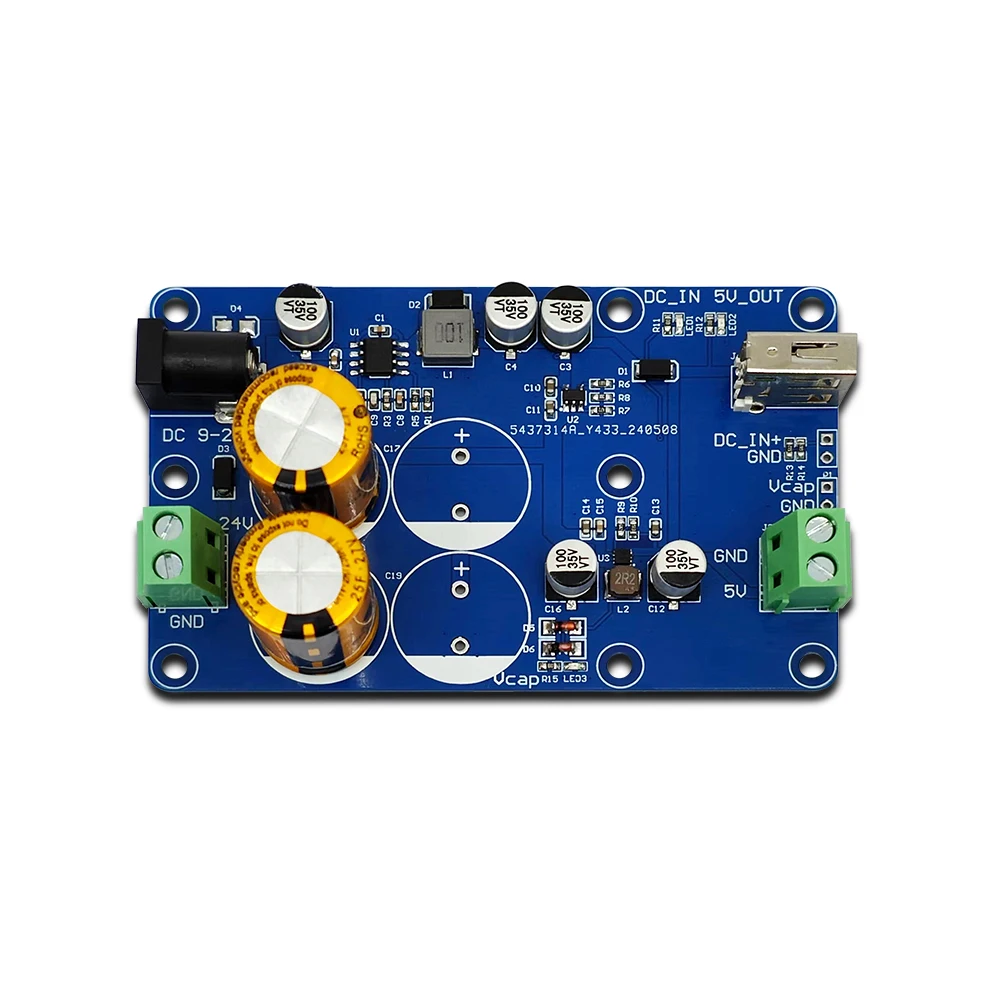

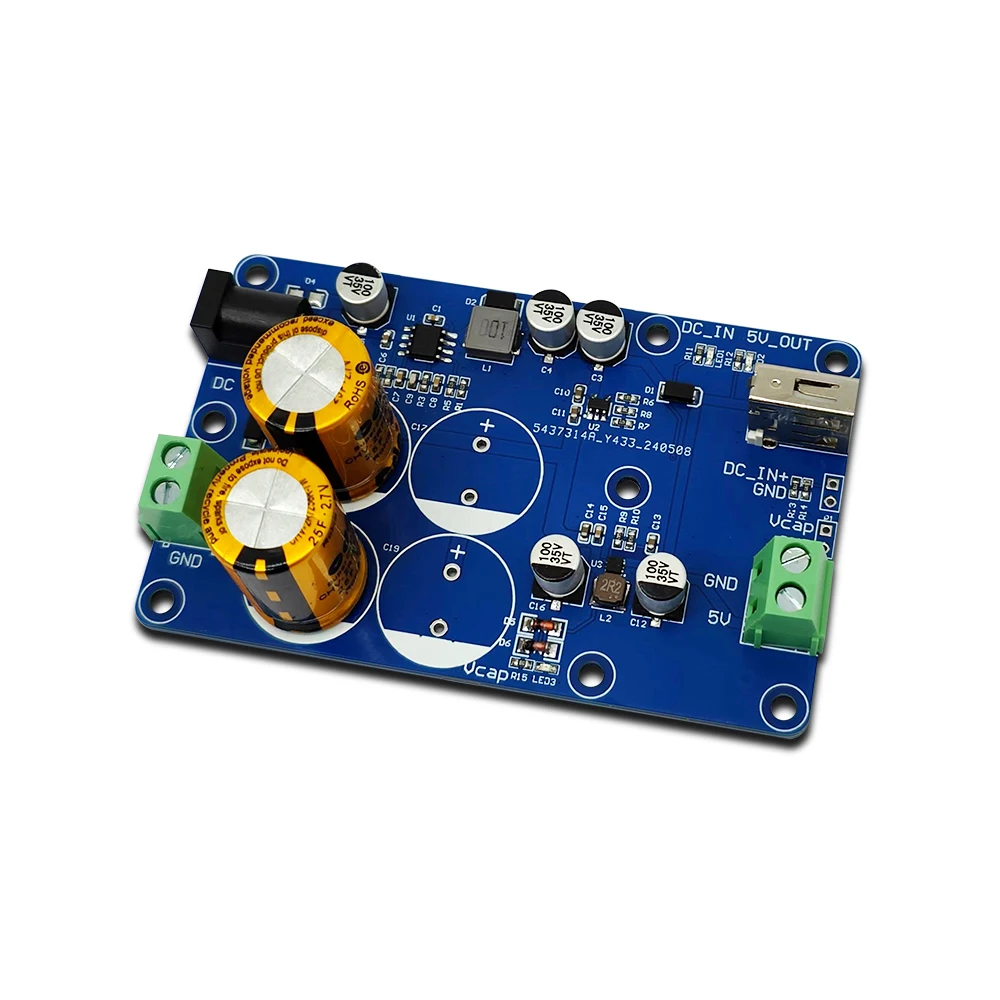

UPS Uninterruptible Power Supply Board for Raspberry Pi DC 9-24V Input 5V 3A Output Power-off Preservation UPS Voltage Protection Designed for high reliability applications, it quickly switches to ultracapacitor discharge when an external power supply unexpectedly fails. It can provide 10-60S power failure duration and output external power failure signal, which is sufficient for on-site data storage. Specifications: Power input: 9~24V DC (5.5*2.1mm DC power socket or KF128 terminal) Power output: 5V DC (USB2.0 or KF128 terminal), maximum current 5V 3A Supercapacitor: 25F 2 series The charging current is limited to 1.4A, and the capacitor is full for about 3min Product size 90*56mm Positioning hole: 3.5mm Discharge current: 5V3A (continuous) when connected to the external power supply, only the supercapacitor output 5V3A (within 10s) Power failure detection: 2.54 mm x 2p, 3V indicates external power supply, 0V indicates external power supply failure Note: 1.Due to the light and screen difference, the item's color may be slightly different from the pictures. 2.Please allow 1mm-1cm differences due to manual measurement. Package Includes: 1x Power Supply Module
