CHF 85.90

💬 076 792 63 50 (WhatsApp / SMS)

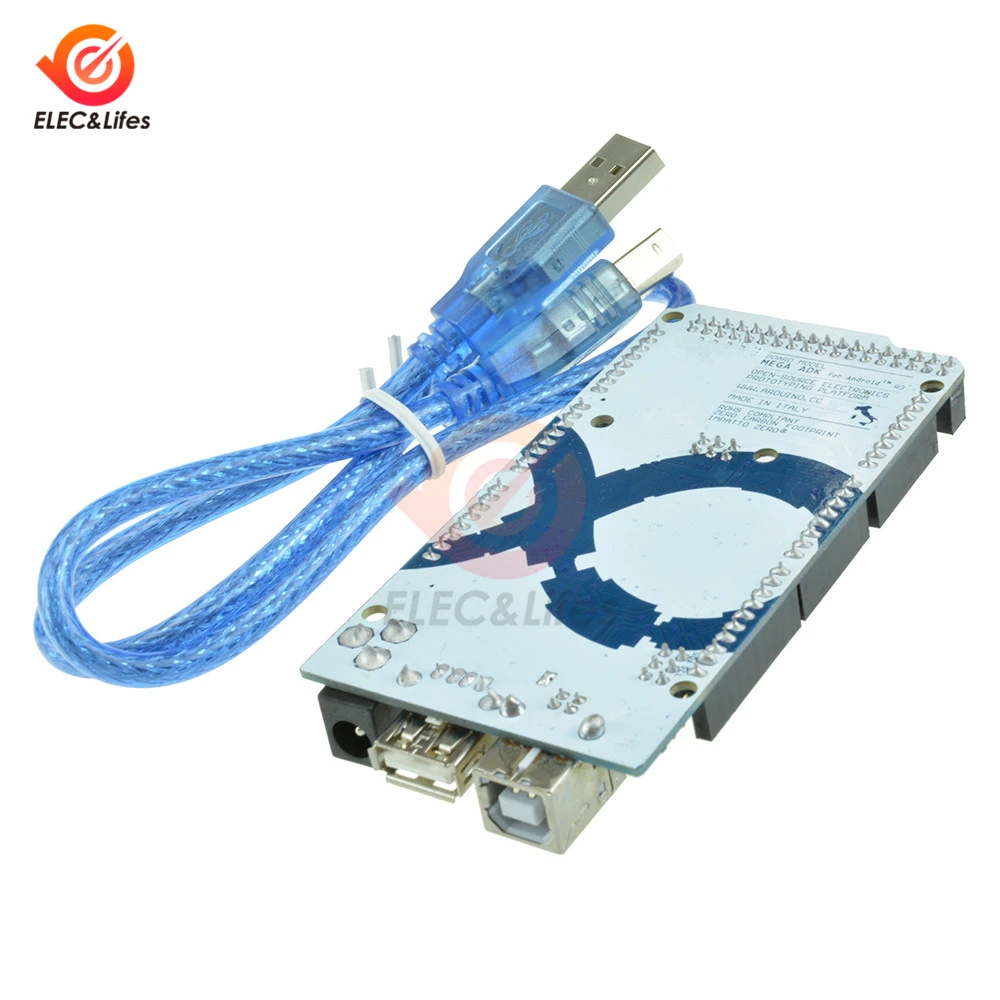

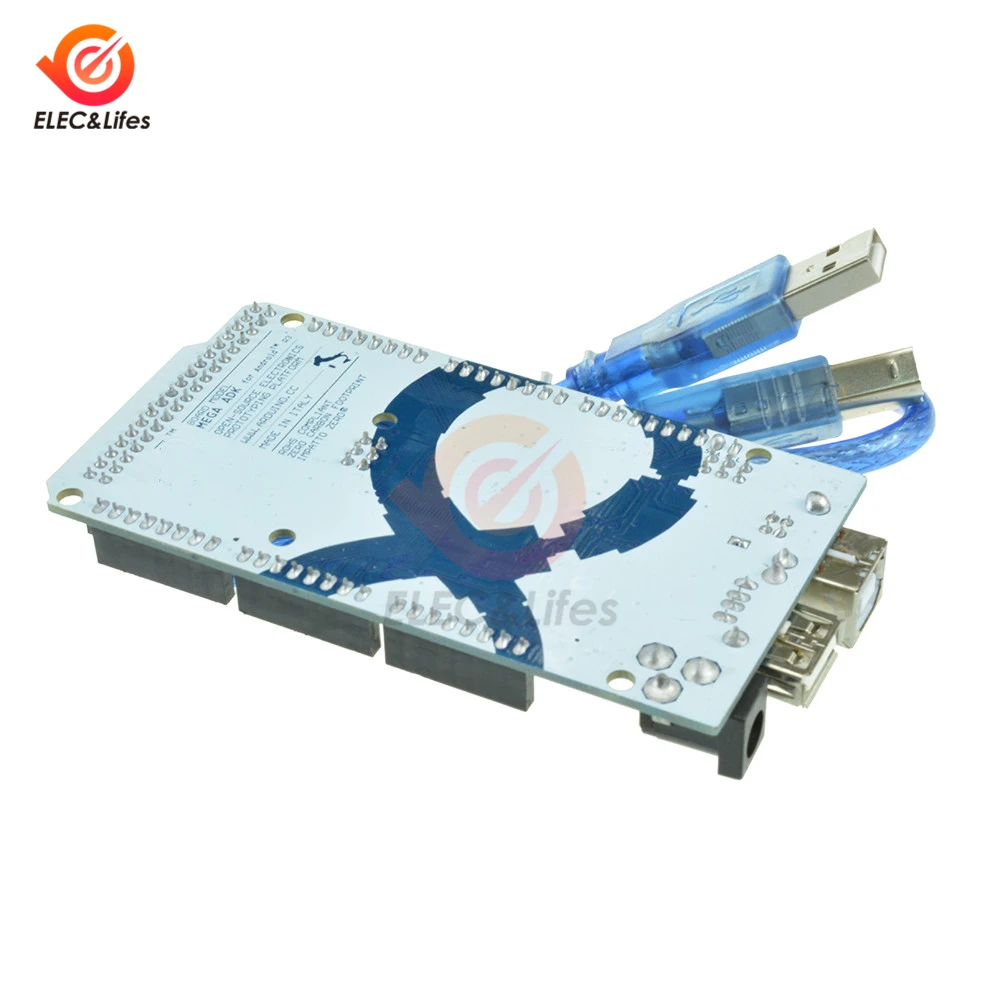

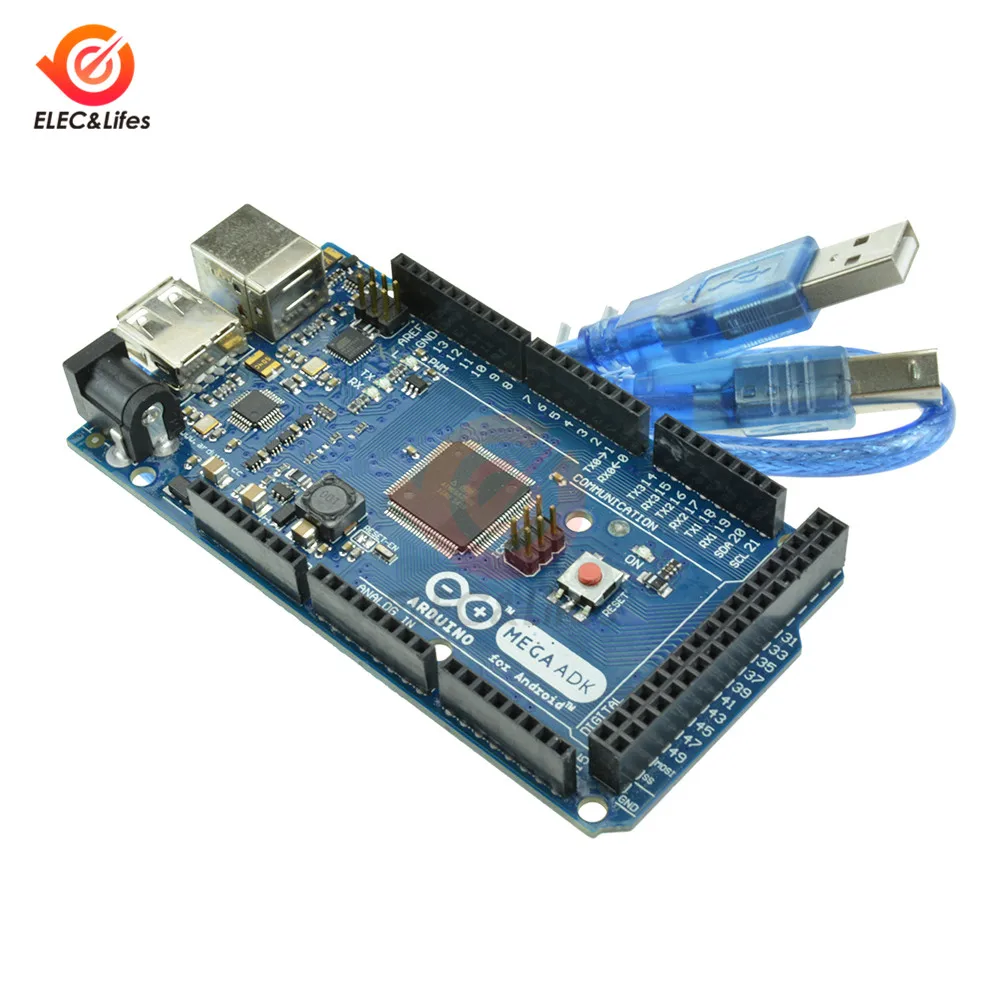

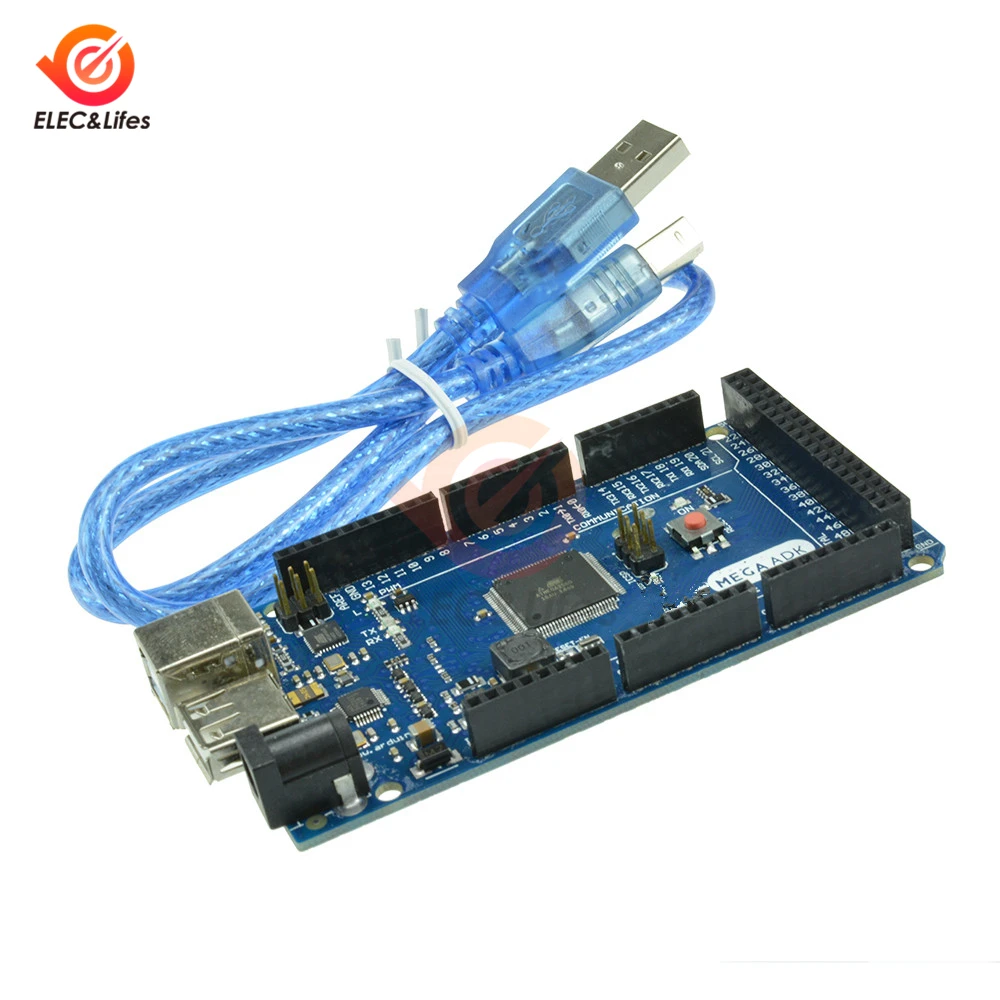

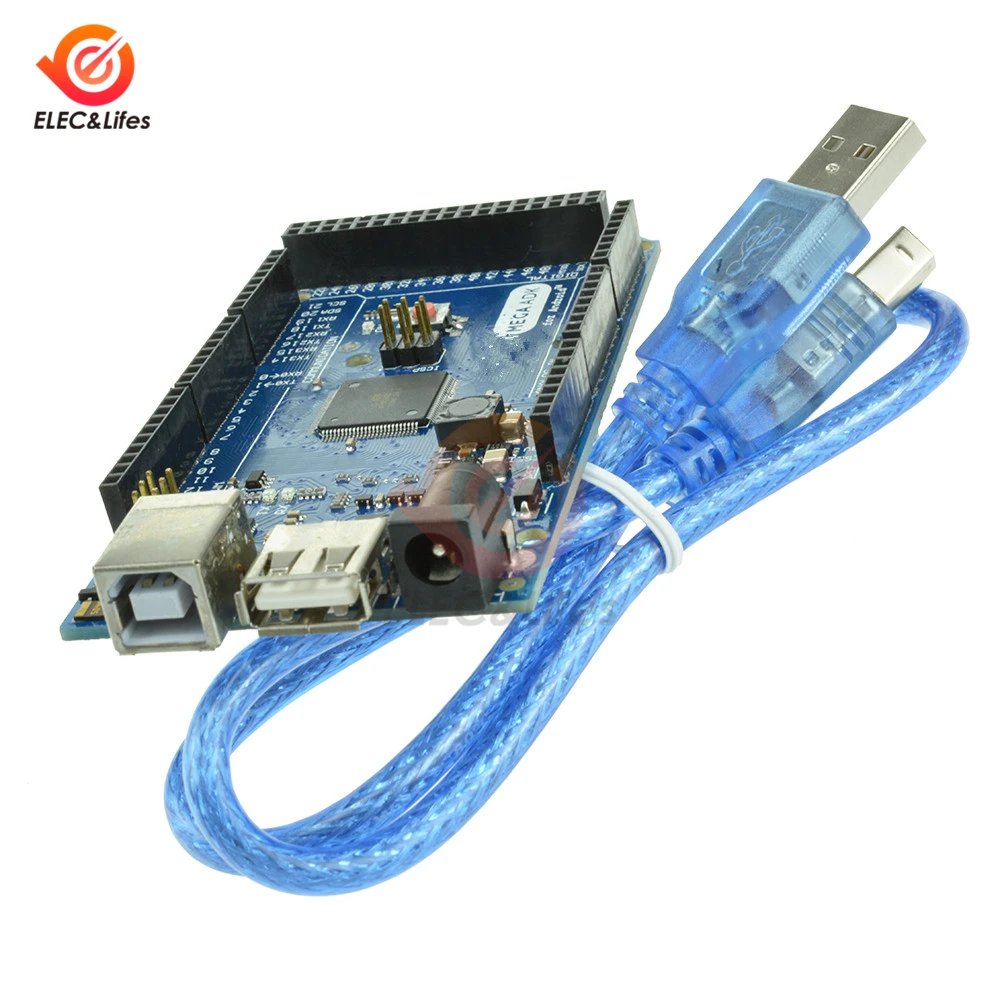

This is the new Mega ADK R3.  ADK is a microcontroller board based on the ATmega2560.   It has a USB host interface to connect for Arduino based board, based on the MAX3421e IC. It has 54 digital input/output pins (of which 14 can be used as PWM outputs), 16 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. Similar to the Mega 2560 and UNO R3, it features an ATmega16U2 instead of ATmega8U2 programmed as a USB-to-serial converter.   The 3.1 platform (also backported to 2.3.4) for Arduino Open Accessory support, which allows external USB hardware (for Arduino USB accessory) to interact for Arduino-powered device in a special accessory mode.  When power device is in accessory mode the connected accessory acts as the USB host (powers the bus and enumerates devices) and for Arduino-powered device acts as the USB device  Model: Mega ADK R3  Material: PCB board  Controller: ATmega2560  Working voltage: 5V  Input voltage: 7~12V  Limit voltage: 6~15V  Digital ports: 54 (14 PWM output ports)  Analog ports: 16  IO port output current: 40mA  3.3V power supply output current: 100mA  Flash: 256 KB of which 8 KB used by boot load  SRAM: 8KB  EEPROM: 4KB  Crystal: 16MHz   Package Included: 1 x ATMEGA ADK R3 Development controller for Arduino 1 x USB Cable
