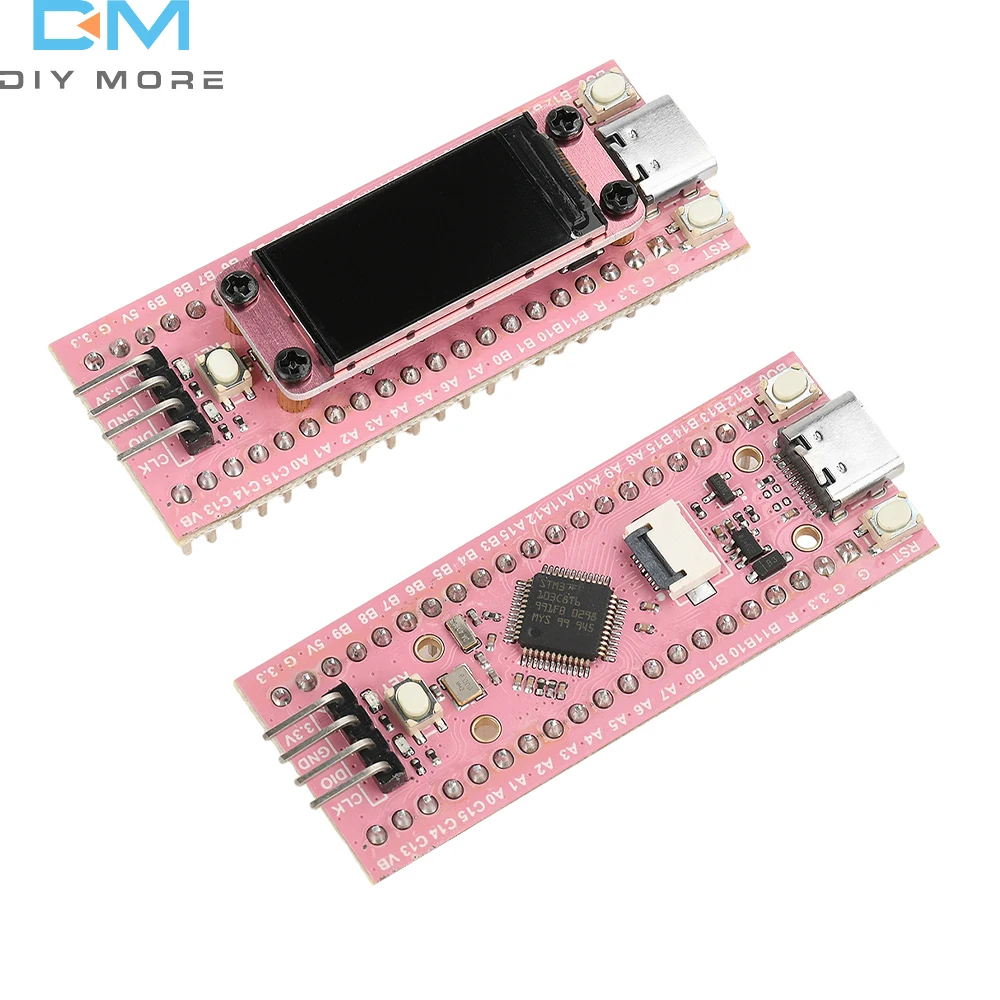

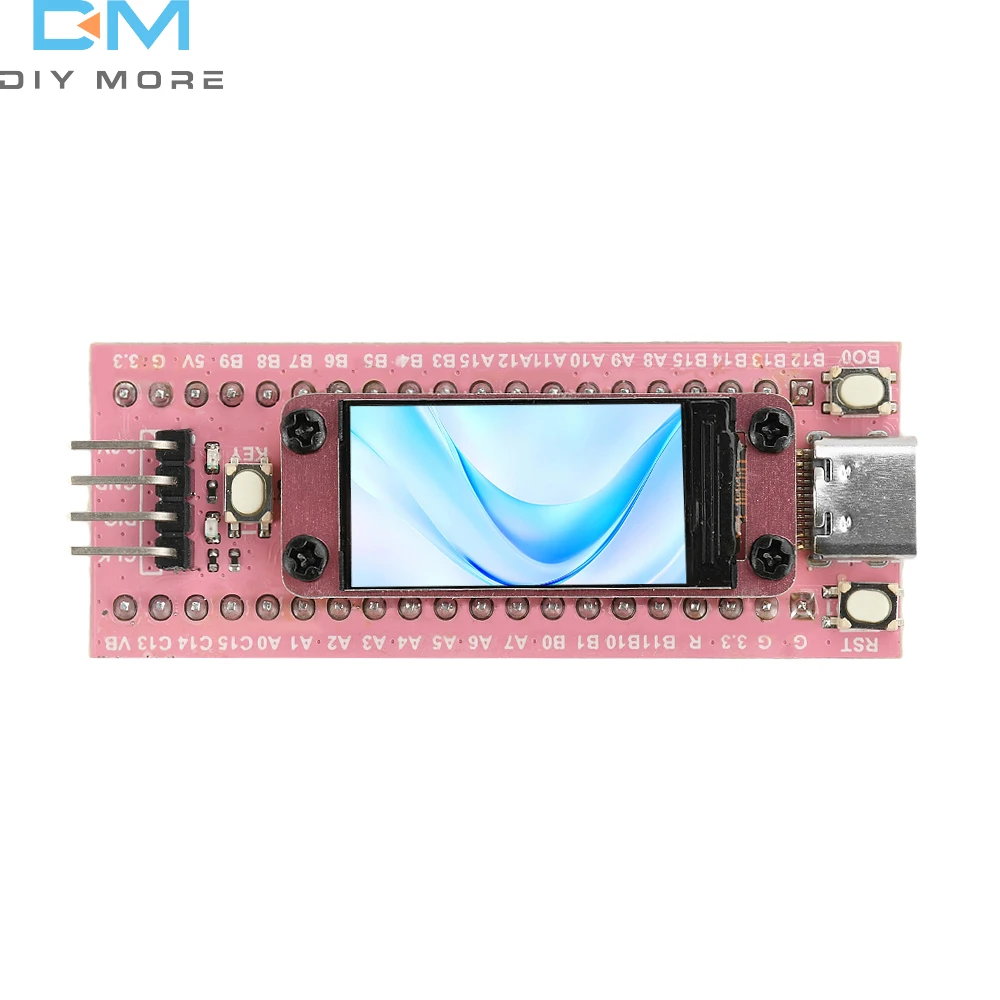

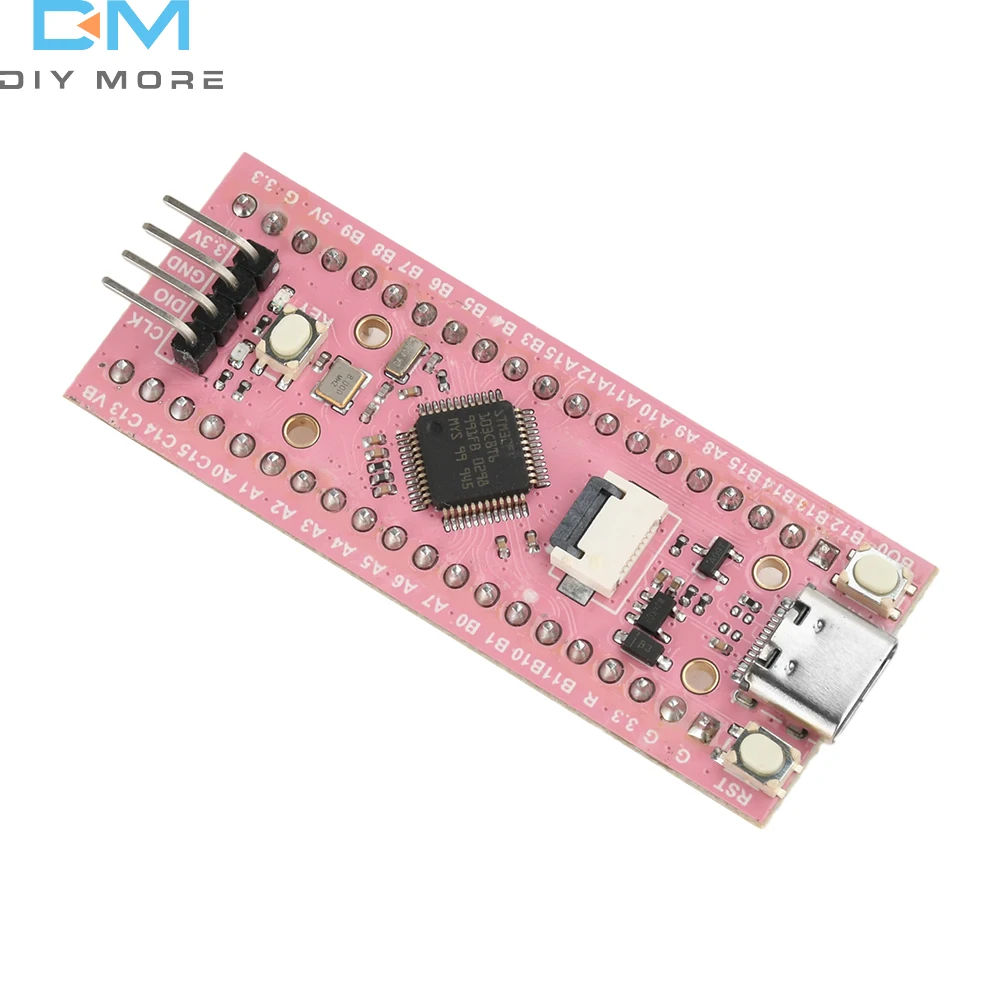

STM32F103C8T6 STM32 Micro TYPE-C System Development Board Module Resolution 80*160 Flash 4MB

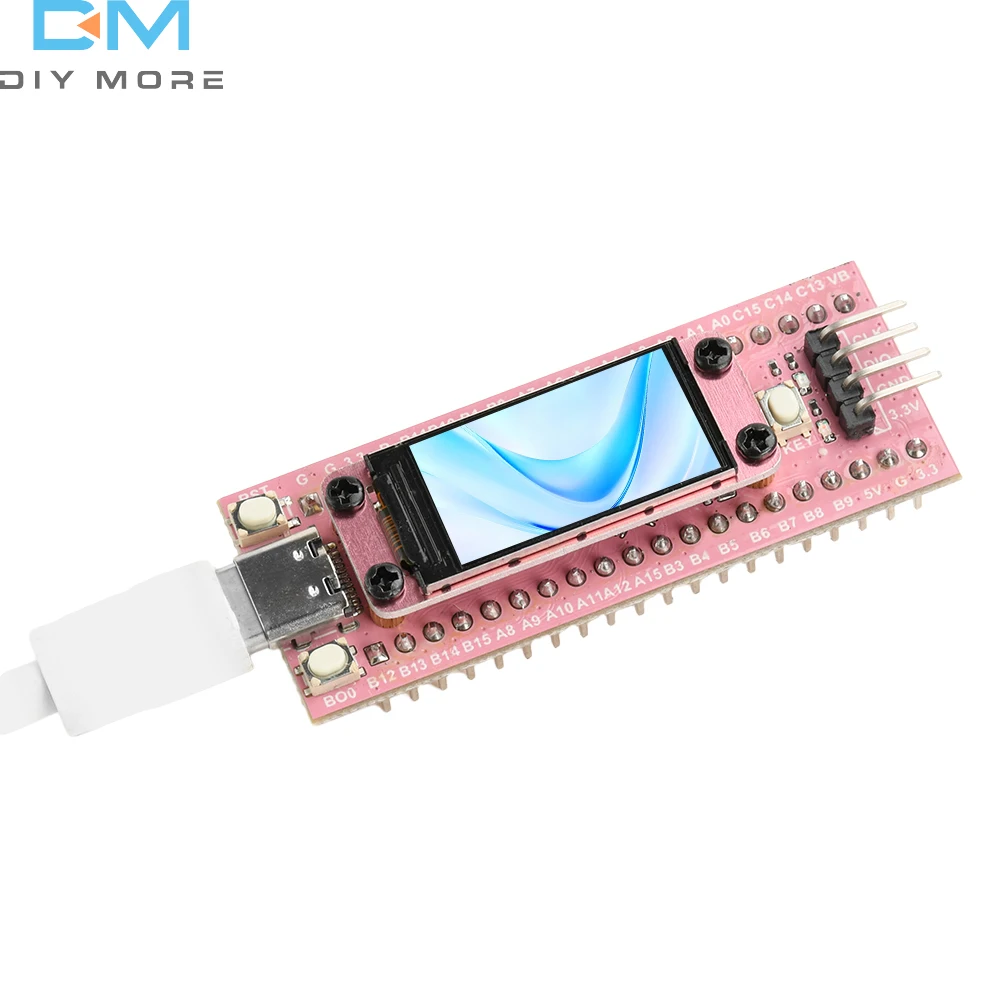

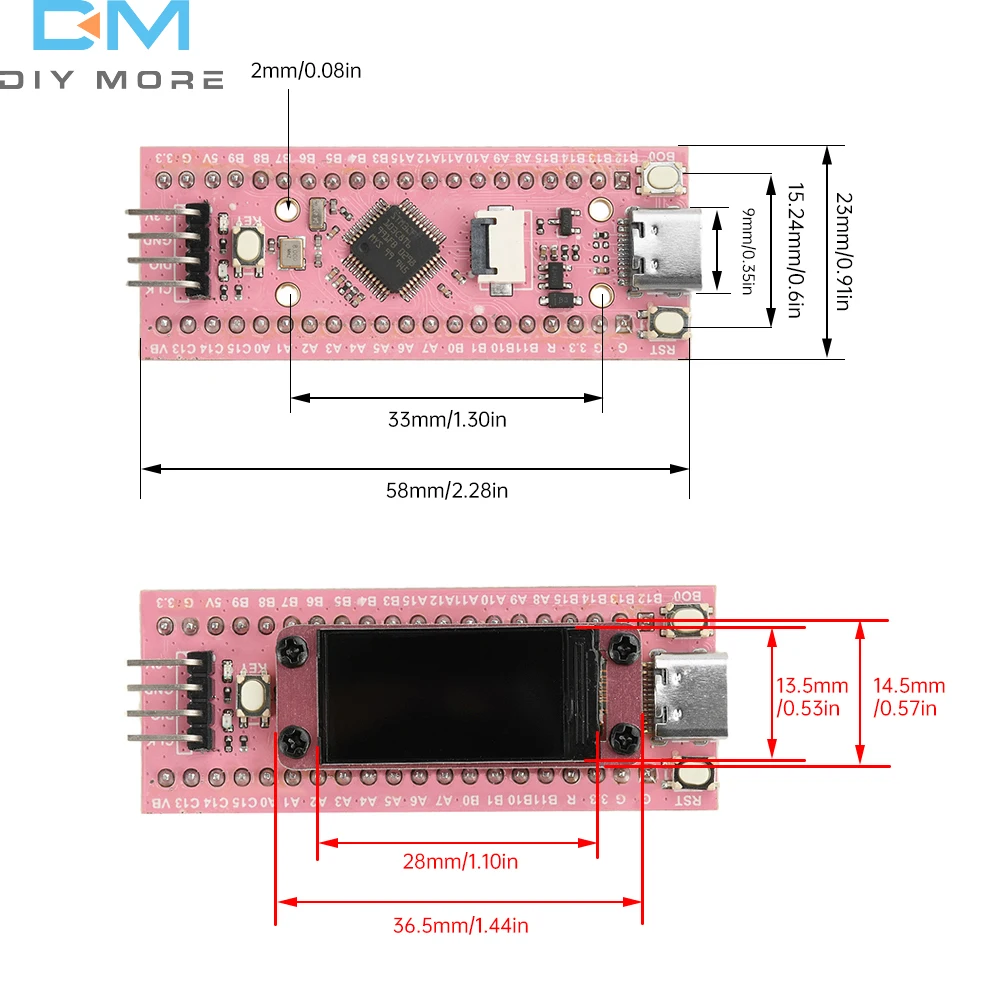

Features: 1.STM32F103 TFT development board to STM32F103C8T6 as the basis for the design and production of the core board, equipped with a 0.96-inch st7735 drive TFT color screen 2.PCB board using pink ink, immersion gold process. The bottom plate of the screen adopts 1MM electroplated pink aluminum alloy plate, quality is guaranteed. 3. Carrying screen: This development board can carry 0.96-inch st7735 drive tft color screen, resolution 80 * 160, connected to the plug, easy to change 4. Strong compatibility: pin and size compatible with the common STM32F103C8T6 small blue board on the market, you can do not change the program, a direct replacement for the 5. The development board is a Type-C interface design, and is equipped with CH340N serial chip and W25Q32 4M flash chip, good stability, strong anti-interference capabilities Parameter: Main control chip: STM32F103C8T6 Screen resolution: 80*160 Built-in flash: 64KB External flash: 4MB Serial Chip：CH340N Product size: 58*22.86*17mm Entering BOOT mode Hot entry: press and hold the reset and B00T buttons at the same time, release the reset button for about 1S and then release the B00T button to enter the B00T download mode. Cold entry: press and hold the B00T button and then connect the USB power supply for about 1S and then release the B00T button to enter the B00T download mode. Package include: 1x STM32F103C8T6 STM32 Micro TYPE-C System Development Board Module Resolution 80*160 Flash 4MB
