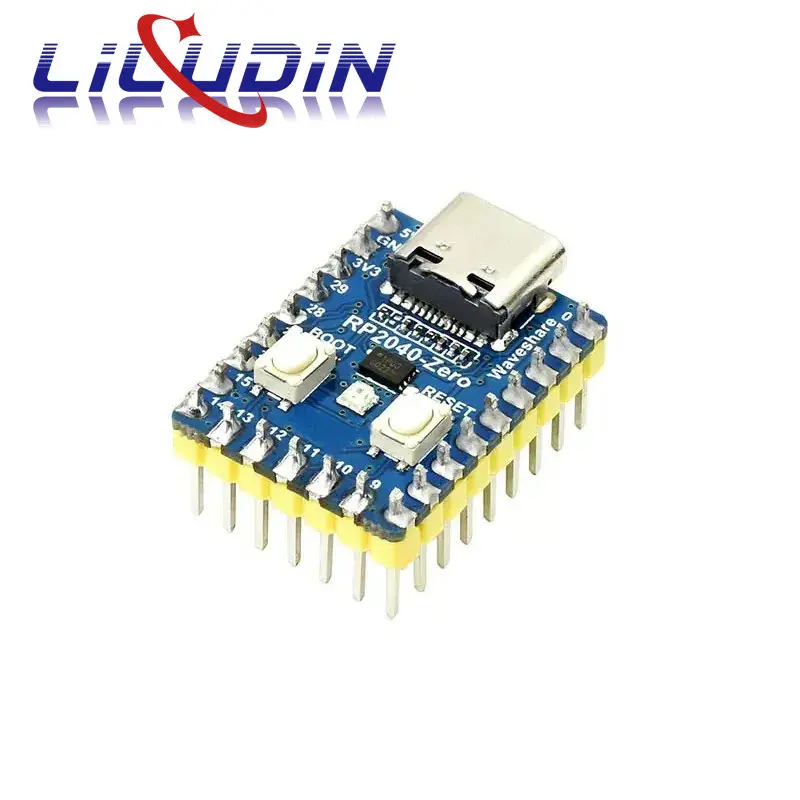

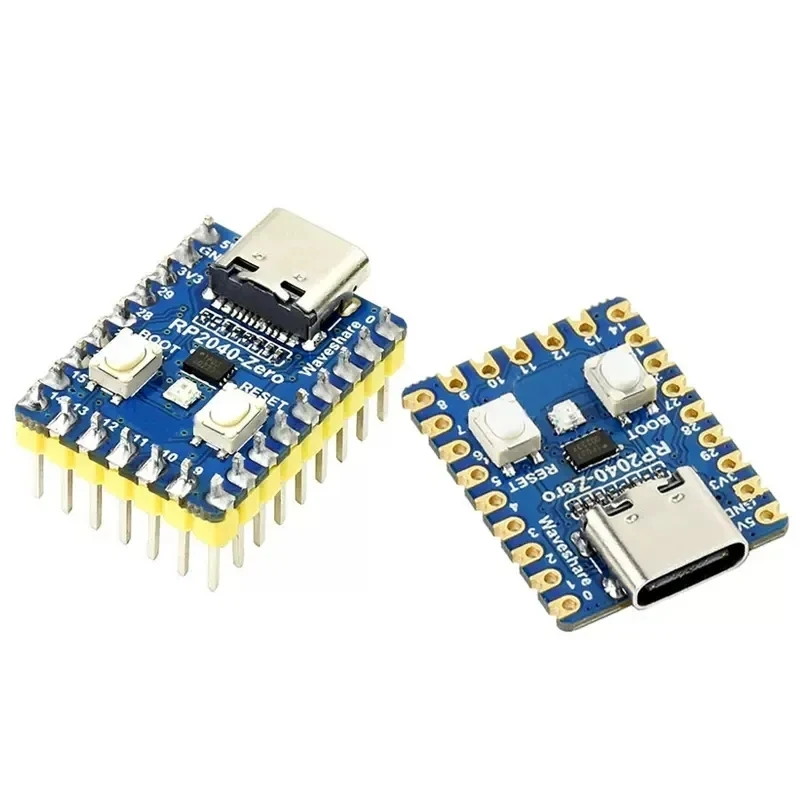

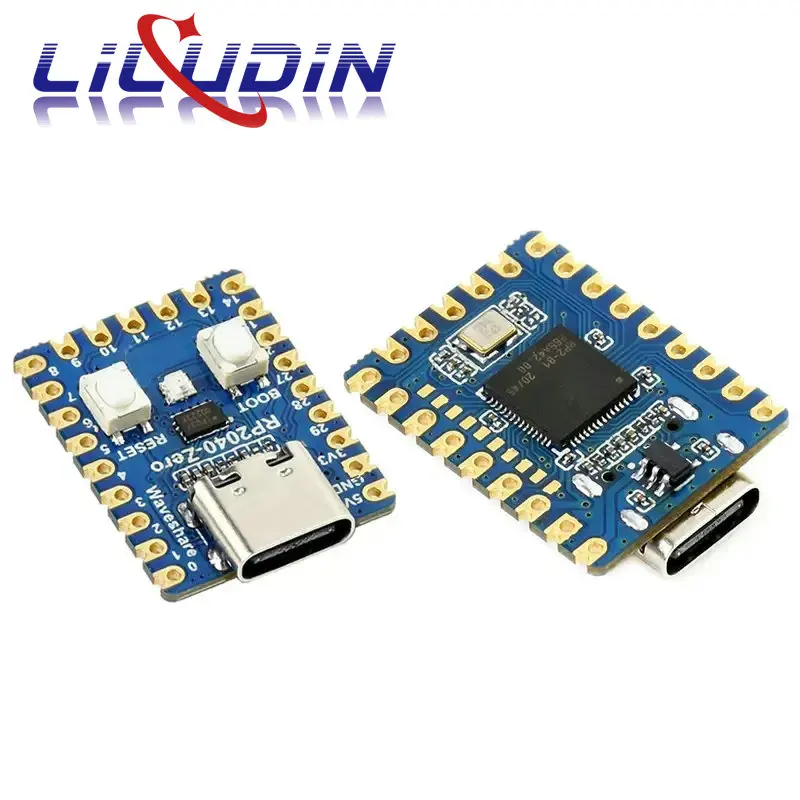

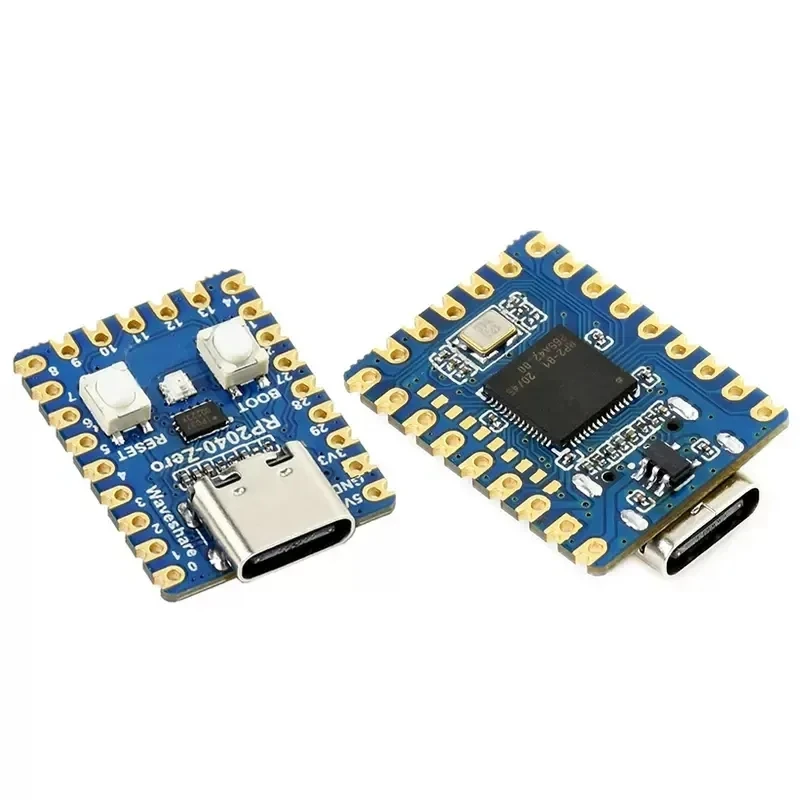

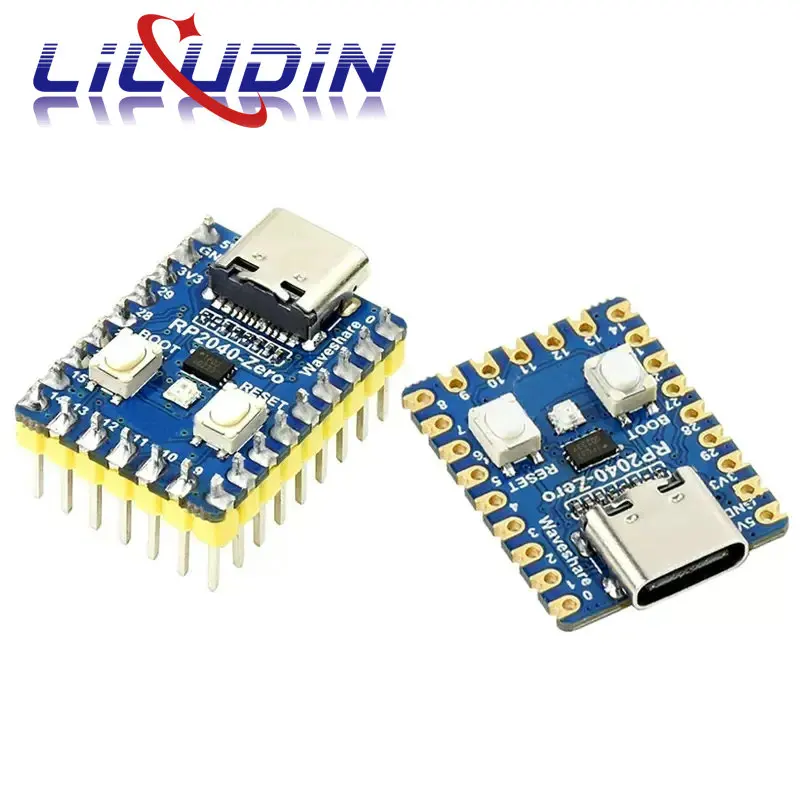

RP2040-Zero RP2040 für Raspberry Pi Mikrocontroller PICO Development Board Modul Dual-core Cortex M0 + Prozessor 2 MB Flash
Product features The RP2040 microcontroller chip is designed by Raspberry Pi It is powered by a dual-core ARM Cortex M0+ processor and runs at up to 133MHz flexible clock It comes with 264KB of SRAM and 2MB of on-chip Flash Real stamp hole design,can be directly welded into the self-designed base plate USB1.1 host and device support Supports low power sleep and hibernation modes Can be identified by USB as mass storage for support type download program 29 GPI0 pins of RP2040 (20 can be led by row pins,the rest can only be led by welding) 2 SPIs,2 12Cs,2 UART,4 12-bit ADC,16 controllable PWM channels Accurate on-chip clock and timer Temperature sensor On-chip accelerated floating point library Eight programmable I/0 (PI0) state machines for custom peripheral support
