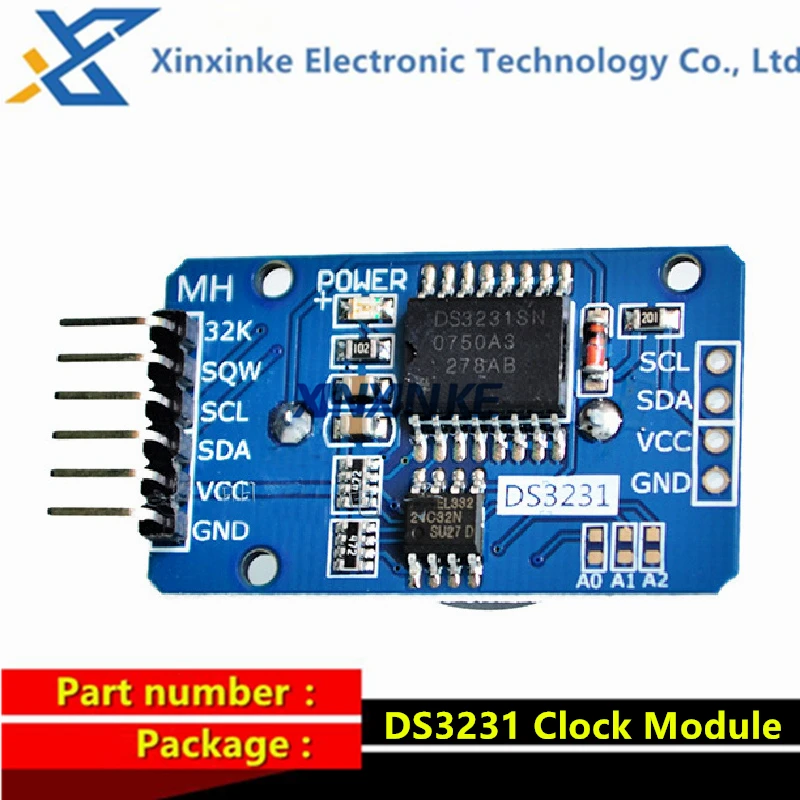

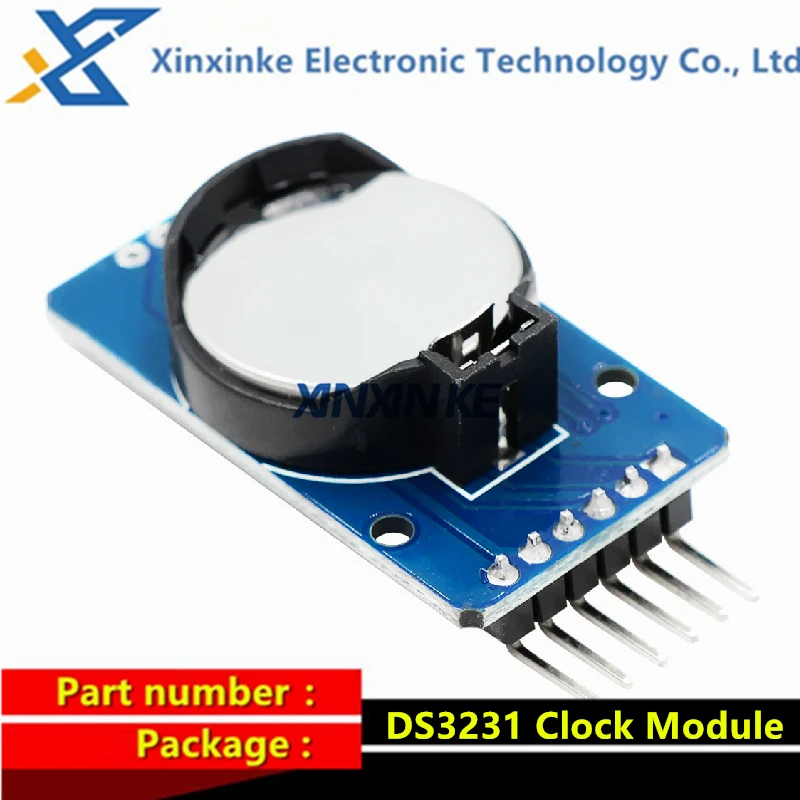

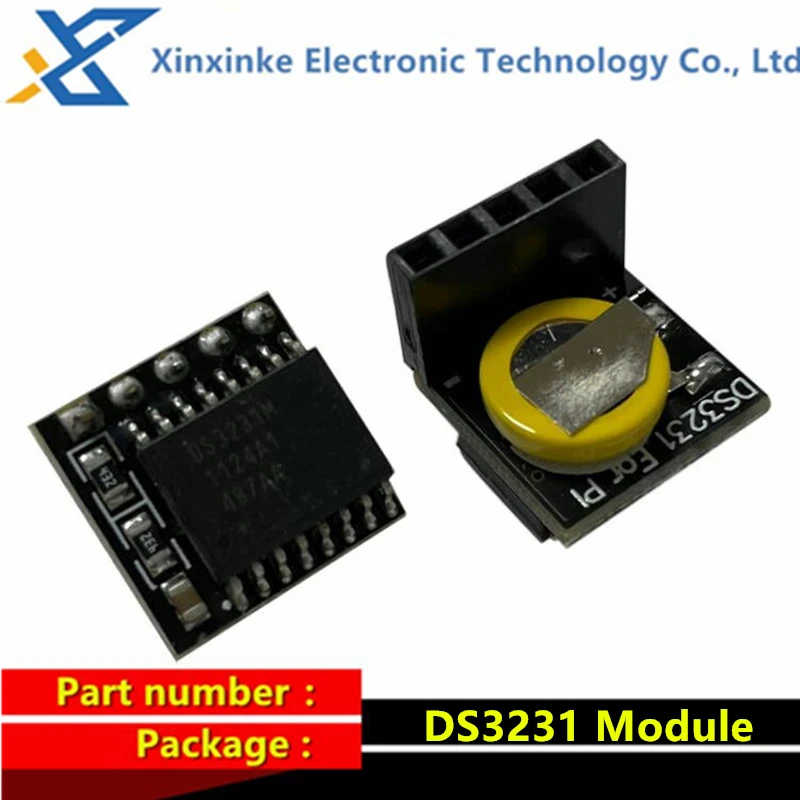

Tips：The Page Price Is For Reference Only, You Can Contact Us To Give You a More Favorable Unit Price. The DS3231 is a low cost, high precision I2C Real time clock (RTC) with an integrated thermostatic crystal oscillator (TCXO) and crystal. The device contains a battery input that maintains a timing when the main power supply is disconnected. Integrated crystal oscillator improves device longevity and reduces the number of components in the production line. The DS3231 is offered in both commercial and industrial grade temperature ranges in a 16-pin 300mil SO package. RTC stores information about seconds, minutes, hours, weeks, dates, months, and years. For months less than 31 days, the month end date will be automatically adjusted, including leap year corrections. The clock can work in 24 hour format or 12 hour format with /AM/PM indication. Provides two settable calendar alarms and a settable square wave output. The address and data are transmitted through I2C bidirectional bus serial. Precision, temperature-compensated voltage reference and comparator circuits monitor VCC status, detect power failure, provide reset output, and automatically switch to backup power when necessary. In addition, the /RST monitor pin can be used as a manual input to generate a μP reset. In addition to high timing accuracy, the DS3231 has several other features that extend the range of additional features and options available to the system host. An unusual digital temperature sensor is integrated into the device, which can be accessed (like time) through the I2C* interface. This temperature sensor has an accuracy of ±3°C. The on-chip control circuit enables automatic power detection and manages power switching between the primary power supply and the standby power supply (i.e. the low-voltage battery). If the main power supply fails, the device can continue to provide timing and temperature without affecting performance. The on-chip reset function can be used to restart the system mic
