ab CHF 5.90

💬 076 792 63 50 (WhatsApp / SMS)

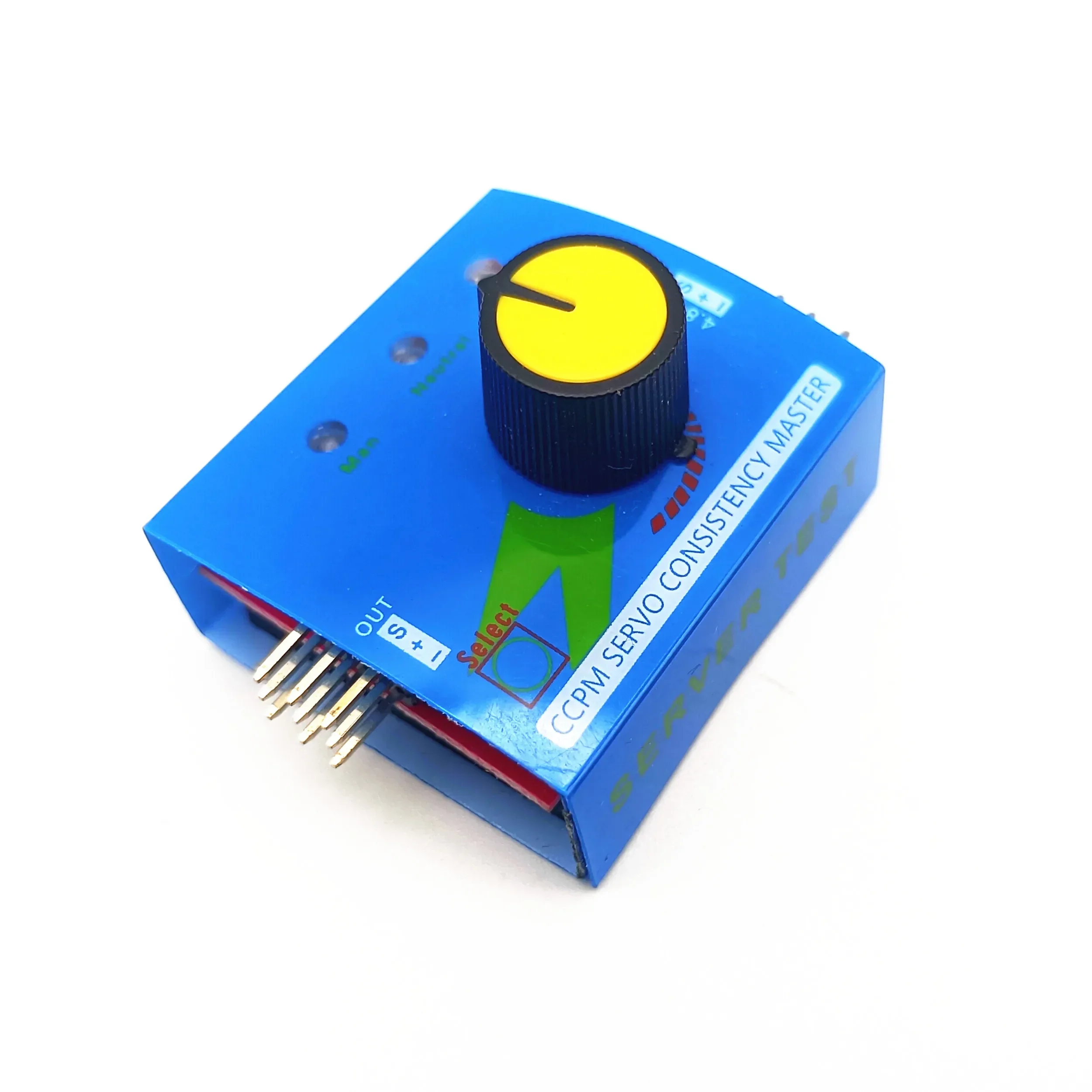

Multifunction Digital ESC Tester Simple Steering Gear Tester Model Airplane Motor Test Consistency Speed Controller Power Meter Specifications: (1) Output: ≤15mA (5.0) (2) Input: DC 4.2-6.0v (3) Output signal: 1.5ms±0.5ms (4) Size: 46*32*17MM (5) Weight: 8g (6) Adjustment method: manual, automatic, neutral position. Features: It can easily detect and set the virtual position, jitter and neutral position of the server. Two sets of steering gears or ESCs can be connected; single-chip microcomputer control, good stability and high precision. Rotate the knob to detect the steering gear. If you connect an electronic speed controller (with or without a brush), you can get rid of the remote control device and perform manual speed adjustment for test adjustment. The performance of the speed controller or motor is very practical, so there is no need to connect the remote control and the receiver tediously. It is equivalent to a "hand The function of moving the receiver is to simulate the rudder of the transmitter through the knob Instructions for use: Connect the steering gear on the left, divided into 3 groups of upper, middle and lower, 3 steering gears can be connected; The single-row pin on the right is connected to the power supply, and the side near it is negative (see the identification symbol), and the battery is connected to the negative. Pay attention not to connect it reversely. If the power supply is connected reversely, the IC will be burned; Don't bother about the pin corresponding to the S identifier. When the power is turned on, the blue light will light up at the same time, and then only the left one will light up, which is the manual adjustment potentiometer test, press the button, the middle light will light up, it is the centering test; The third light is on, and the test is automatically performed. The connection method of the test ESC is the same as that of the servo, but the input terminal should not be connected to the power supply. The test motor
