Banana Pi BPI-R3 Mini-Router-Board MediaTek MT7986 ARM A53 2G DDR 8G eMMC unterstützt WiFi 6 und 2 x 2,5 GbE-Anschluss Open-Source-Router

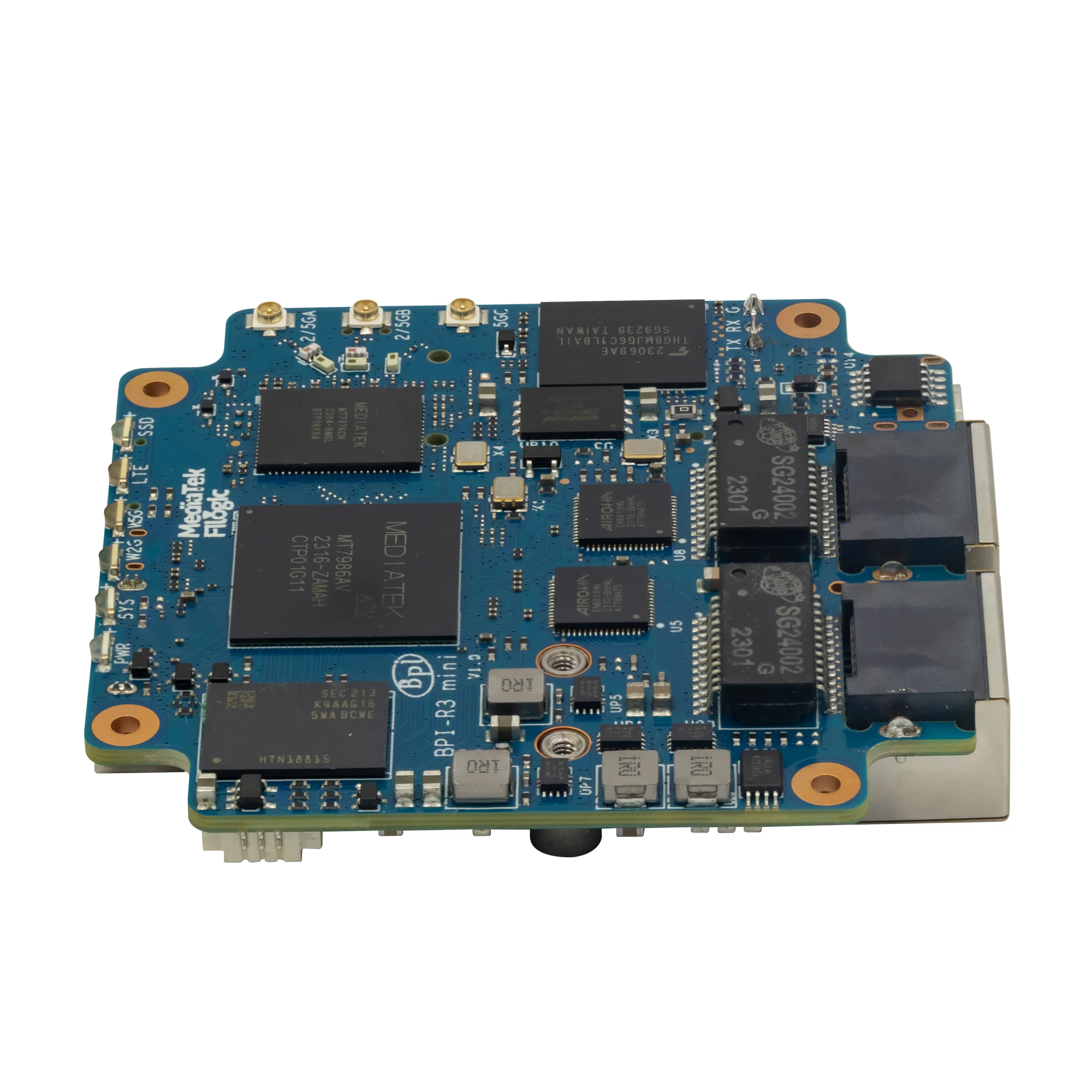

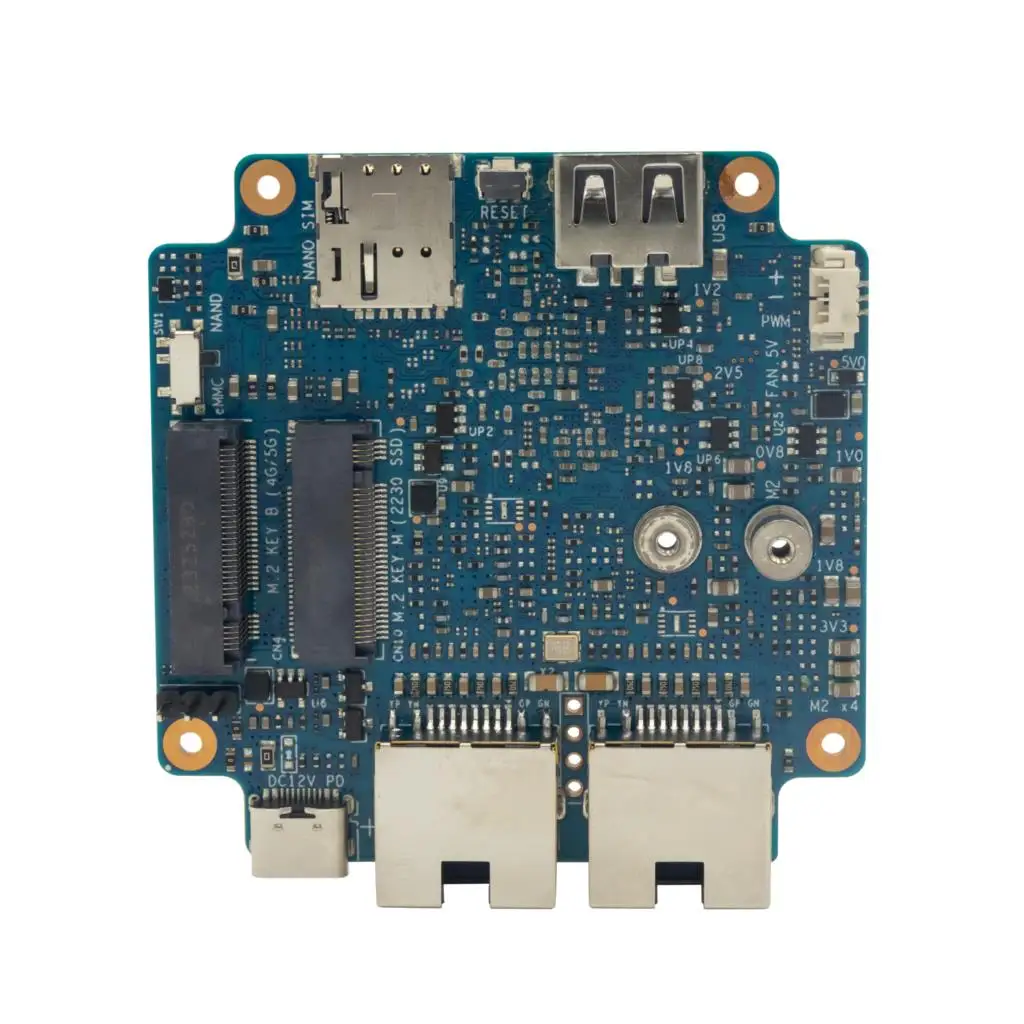

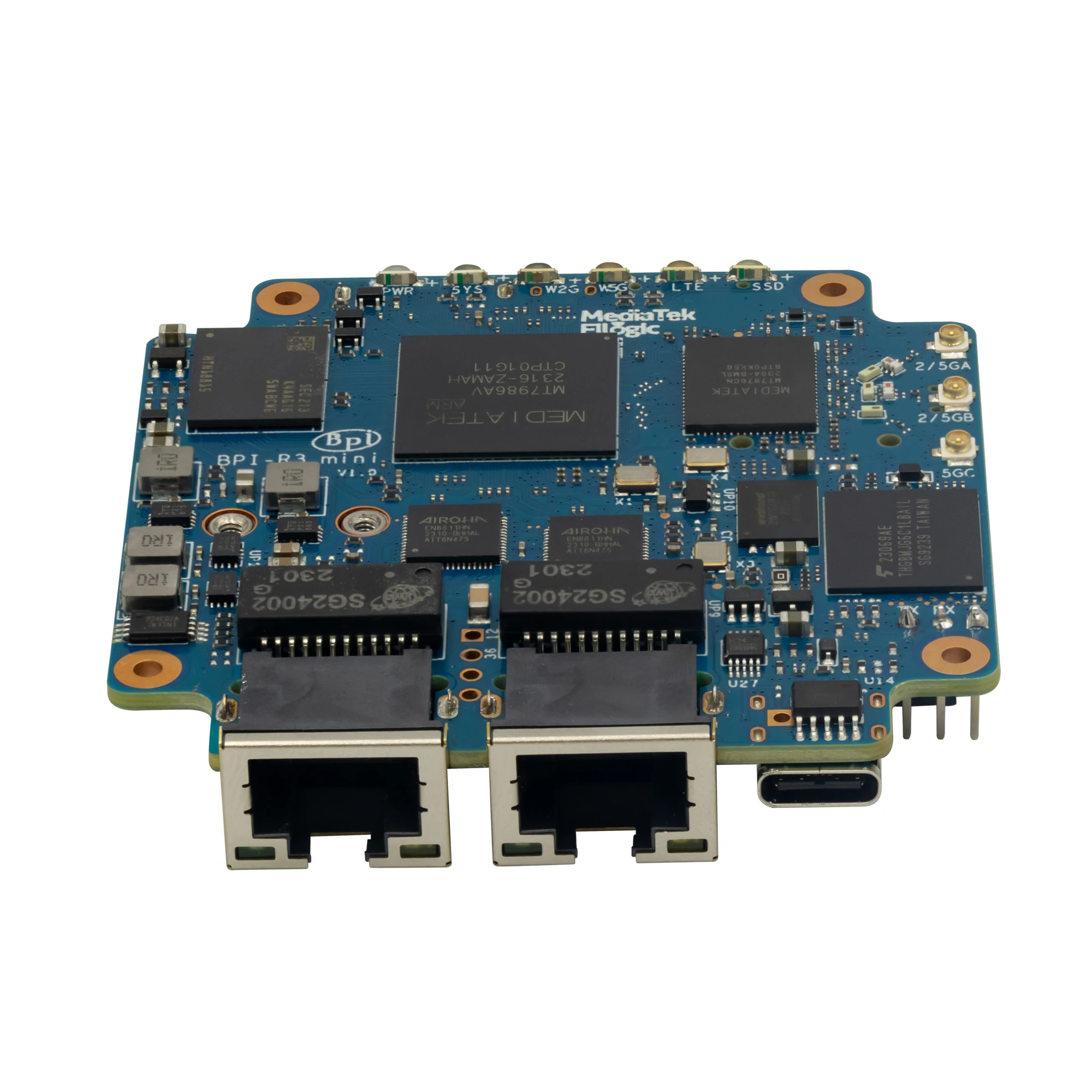

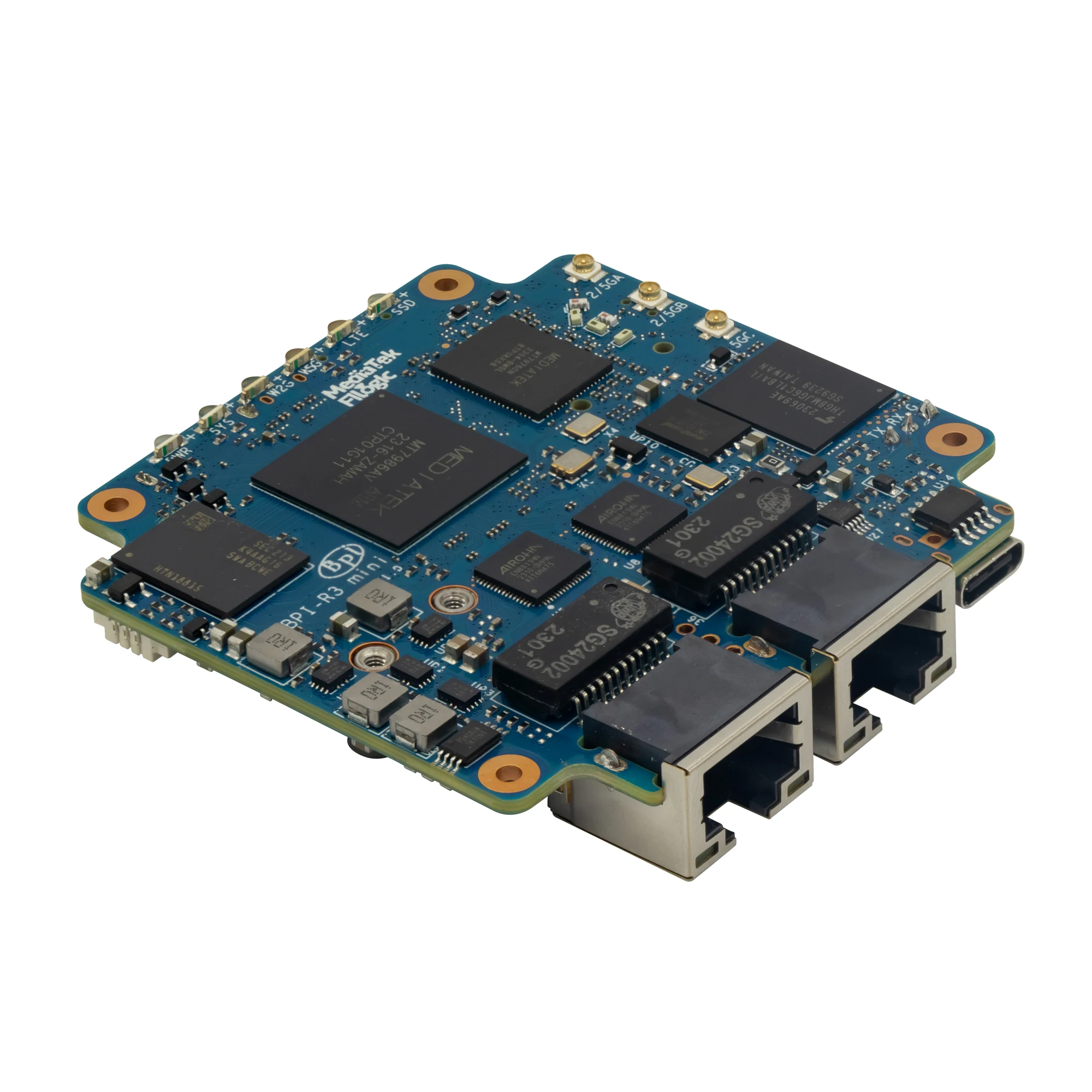

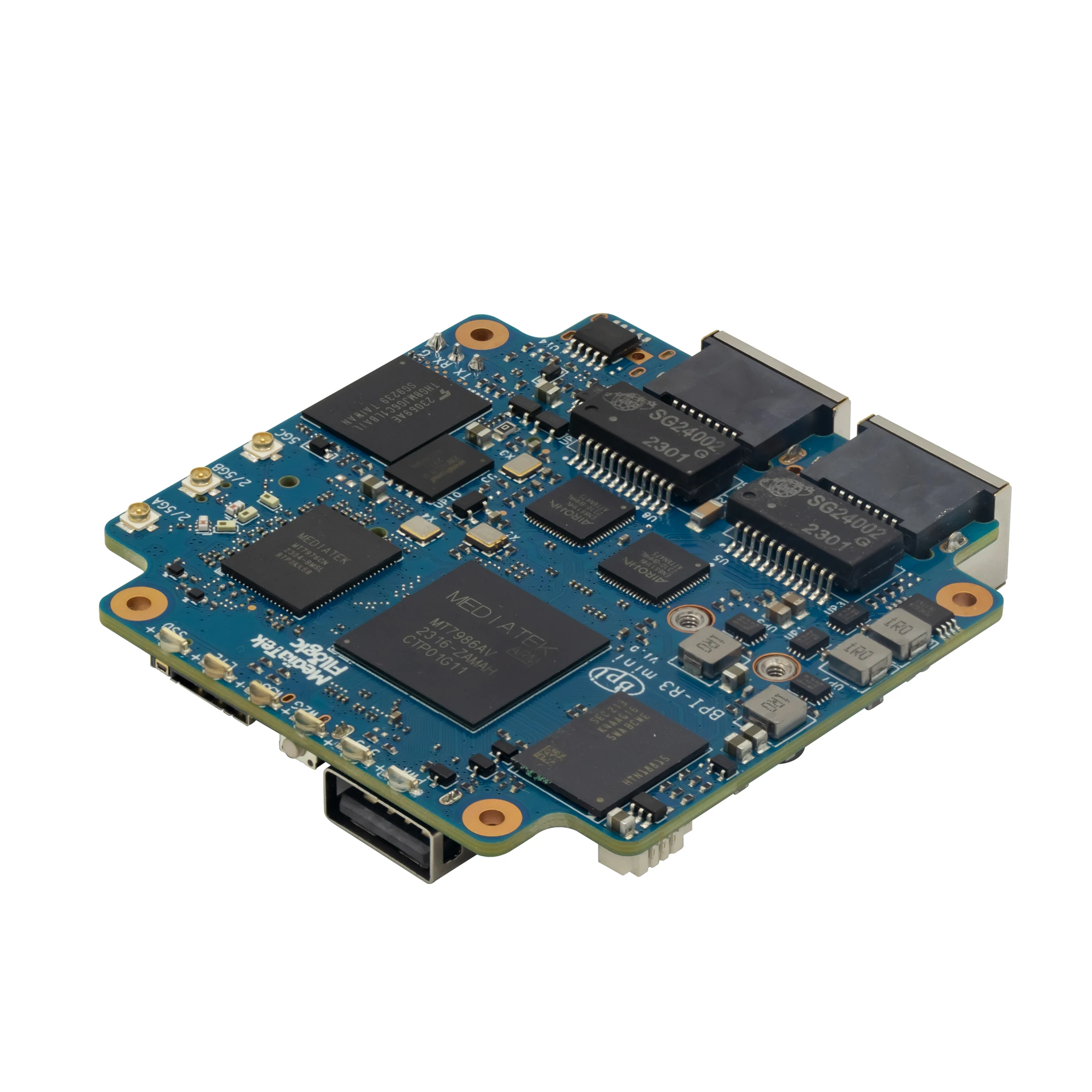

Banana Pi BPI-R3 Mini Router Board MediaTek MT7986 ARM A53 2G DDR4 8G eMMC Support WiFi 6 and 2 x 2.5GbE Port Open Source Router Introduction Banana Pi BPI-R3 Mini Router board with MediaTek MT7986(Filogic 830) quad core ARM A53 chip design ,2G DDR RAM ,8G eMMC flash onboard,It is a very high performance open source router development board,support Wi-Fi6 2.4G wifi use MT7975N and 5G wifi use MT7975P, support 2 2.5GbE network port. MediaTek MT7986(Filogic 830) The MT7986(Filogic 830) integrates four Arm Cortex-A53 cores up to 2GHz with up to 18,000 DMIPs of processing power and 6Gbps of dual 4x4 Wi-Fi6 connectivity. It has two 2.5g Ethernet interfaces and serial peripheral interfaces (SPI). Filogic 830‘s built-in hardware acceleration engine enables fast and reliable Wi-Fi offloading and wireless network connection. In addition, the chip supports Mediatek FastPath™ technology, which is suitable for games, AR/VR and other low-latency applications. Wi-fi 6 has many advantages over its predecessors, including lower latency, larger bandwidth capacity and faster transmission rates. Wireless network devices supporting the 6GHz band mainly use 160MHz wide channel and 6GHz uncongested bandwidth to provide multigigabit transmission and low-latency wi-fi connection, providing reliable wireless network for streaming media, games, AR/VR and other applications. Application direction . Internet service Router . Wireless Router . Wireless Repeater . Home security Gateway . Home Automation . Nas device . Soft router . Network and communication applications Key Features MediaTek MT7986(Filogic 830) Quad core ARM Cortex A53 Wifi 6 2.4G/5G（MT7976C） 2G DDR RAM 8G eMMC flash 128MB Nand flash 2x 2.5GbE network port 1x M.2 Key B USB inerface 1x M.2 KEY M PCIe inerface 1x USB2.0 interface Getting Start Getting Started with BPI-R3 Hardware Hardware interface Hardware spec HardWare Specification of
