RTL.SDR USB-Empfänger RTL2832U R820T2 100KHz-1,7GHz UHF UV HF

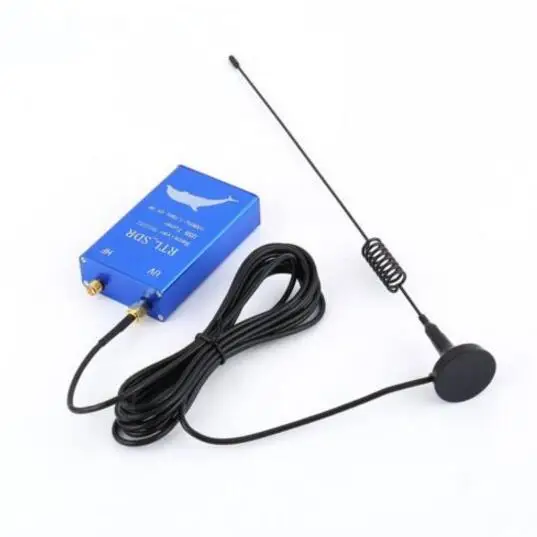

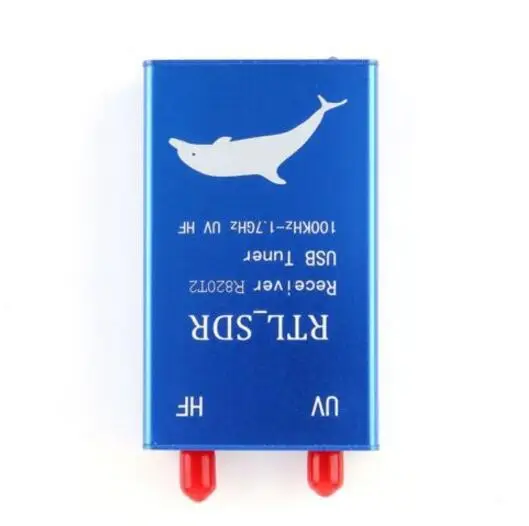

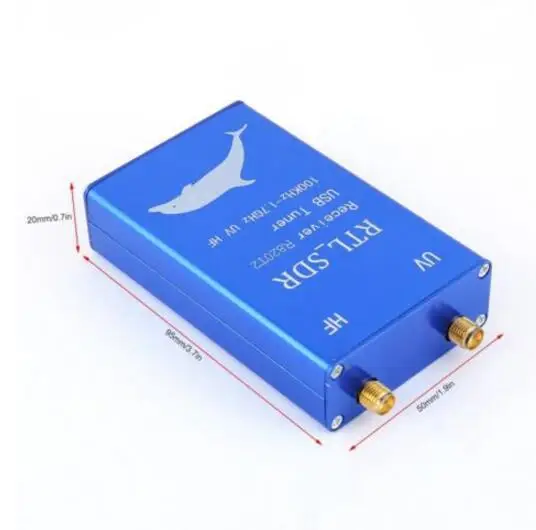

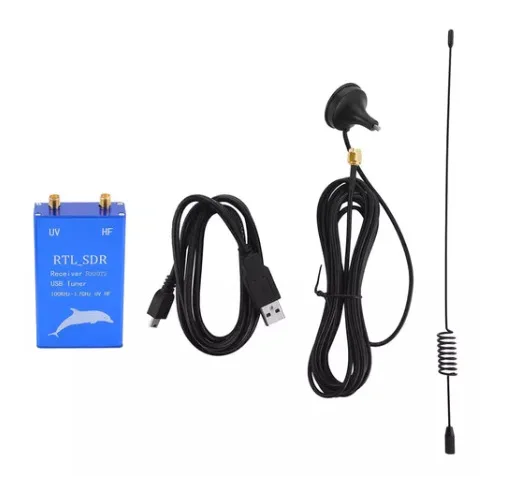

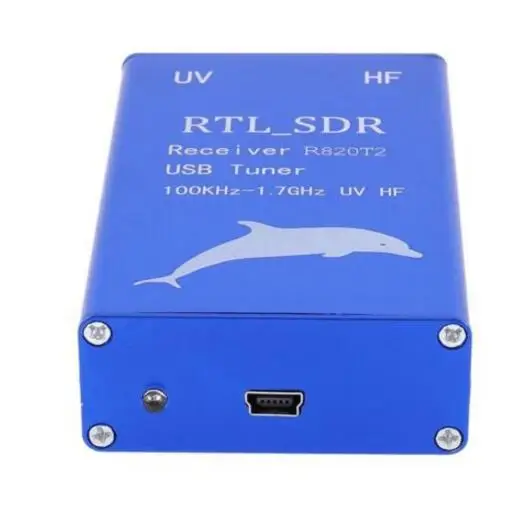

Features: Made of aluminum shell material, durable and use life long. Portable size board, lightweight. RTL.SDR RTL2832U R820T2 100KHz-1.7GHz Tuner Receiver Aluminum enclosure screened panels HF Q branch direct sampling Fully assembled and ready to use Uses RTL2832U R820T2chip set 100KHz to 1766MHz, operating frequency Covers all HF amateur bands Covers VHF & UHF bands from 24-1766MHz Up to 3.2 M Sample rate. (~2.8 MHz stable) Description: Receiver modes AM, NFM, FM, DSB, USB, LSB and CW 50 Ohm input impedance Double SMA golden antenna connectors Freeware software Independent antenna inputs for Shortwave and VHF USB computer connection ( mini usb) Powered by common USB • All specifications subject to change without notice It can be used to test signal receiving UV band, the resonant frequency is GSM band, to receive the effect of UV is not the best. It is an very cheap software defined radio which is based on DVB-T TV (Digital HD TV) USB receiver dongles that have the RTL2832U chip in them. Note: Depends upon the SDR software used with the receiver • 8-bit ADC giving ~50 dB dynamic range Specification: Material: aluminum Color: blue Size: 95*50*20mm Net weight: 140g Package Included: 1x100KHz-1.7GHz UV HF RTL SDR USB Tuner Receiver R820T Radio 1 x Testing Telescopic Aerial 1 x USB cable
