1,9 Zoll IPS Vollwinkel-TFT-Display LCD-Bildschirm Farbdisplaymodul SPI Serieller Port High-Definition 170x320 ST7789

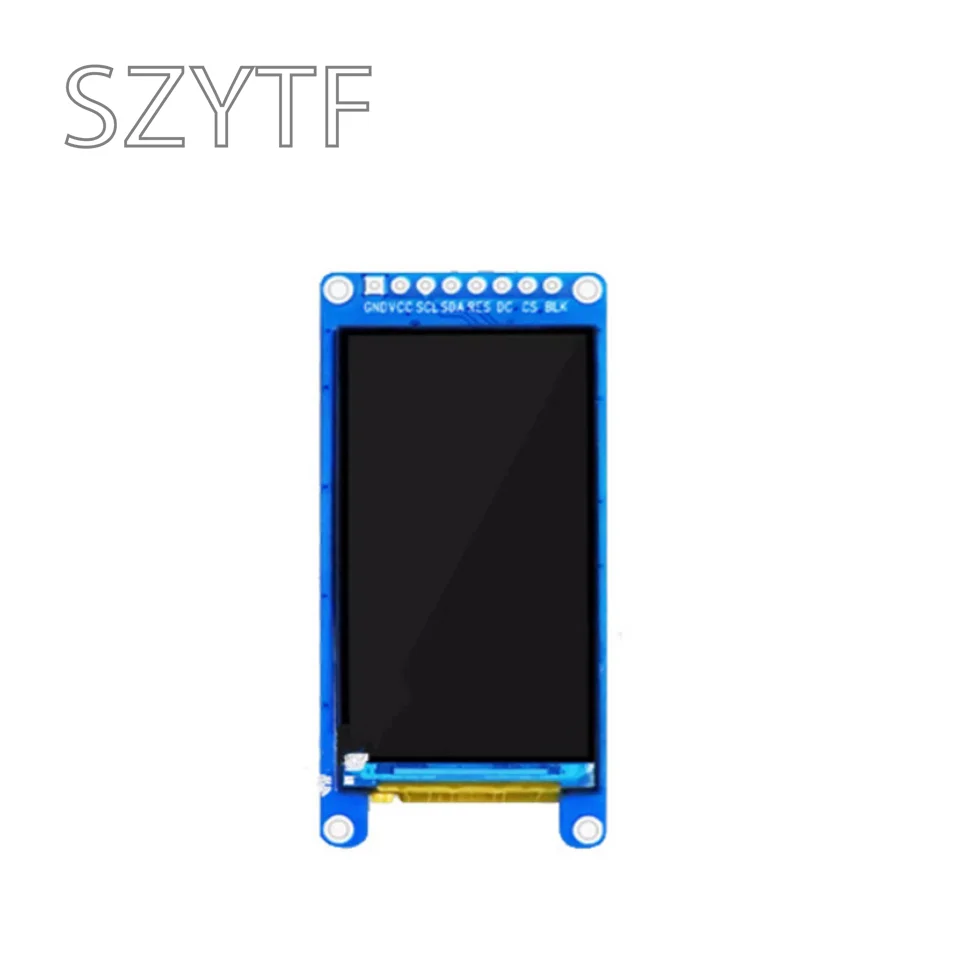

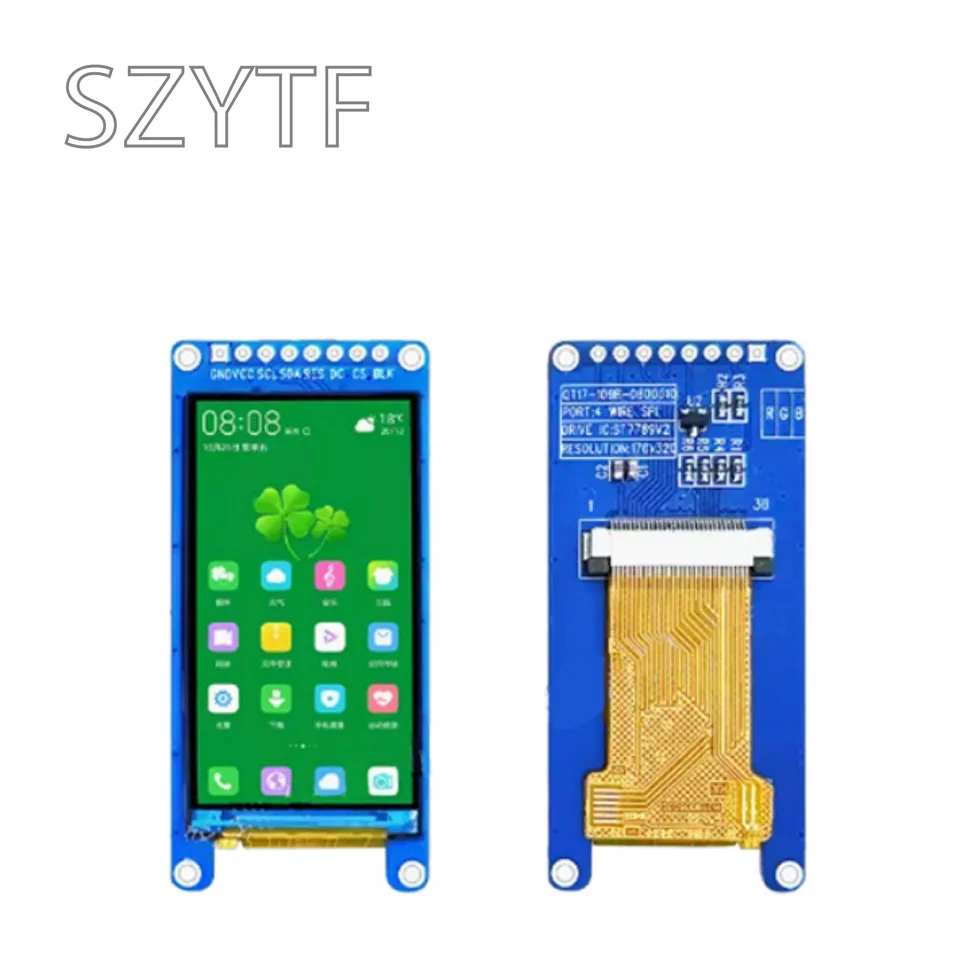

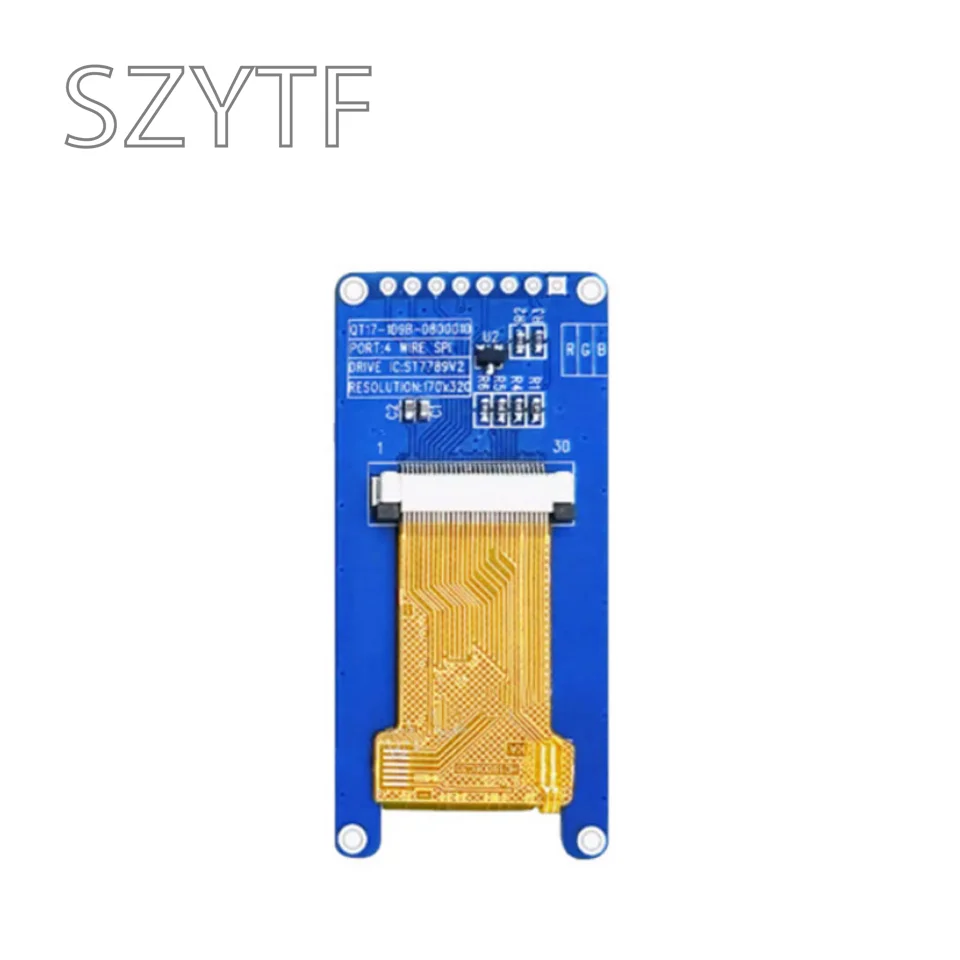

Description 1.9 inch IPS color screen with 170X320 resolution IPS full view panel, 178 ° visual range Adopting a 4-wire SPI serial bus, it only requires a few IOs to light up Provide rich sample programs for STM32, MSP430, and C51 Military grade process standards, long-term stable work Display color: RGB 65K color SKU: MSP1901 Size: 1.9 (inches) Panel Material: TFT Driver chip: ST7789 Resolution: 170 * 320 (Pixel) Display interface: 4-line SPI interface Effective display area (AA area): 22.695x42.72 (mm) Touch screen type: No touch Touch IC: No touch IC Module PCB base plate size: 29.00x62.00 (mm) Perspective: Full angle Working temperature: "-10 ° C~60 ° C Storage temperature: -20 ° C~70 ° C Working voltage: 3.3v Power consumption: TBD Product weight: 13g Interface Definition 1: GND: LCD screen power ground 2: VCC: LCD screen power supply positive (3.3V) 3: SCL: LCD SPI bus clock signal 4: SDA: LCD SPI bus write data signal 5: RES: LCD screen reset control signal 6: DC: LCD screen register/data selection control signal 7: Cs: LCD screen chip selection control signal 8BLK: LCD backlight control signal
