ab CHF 6.90

💬 076 792 63 50 (WhatsApp / SMS)

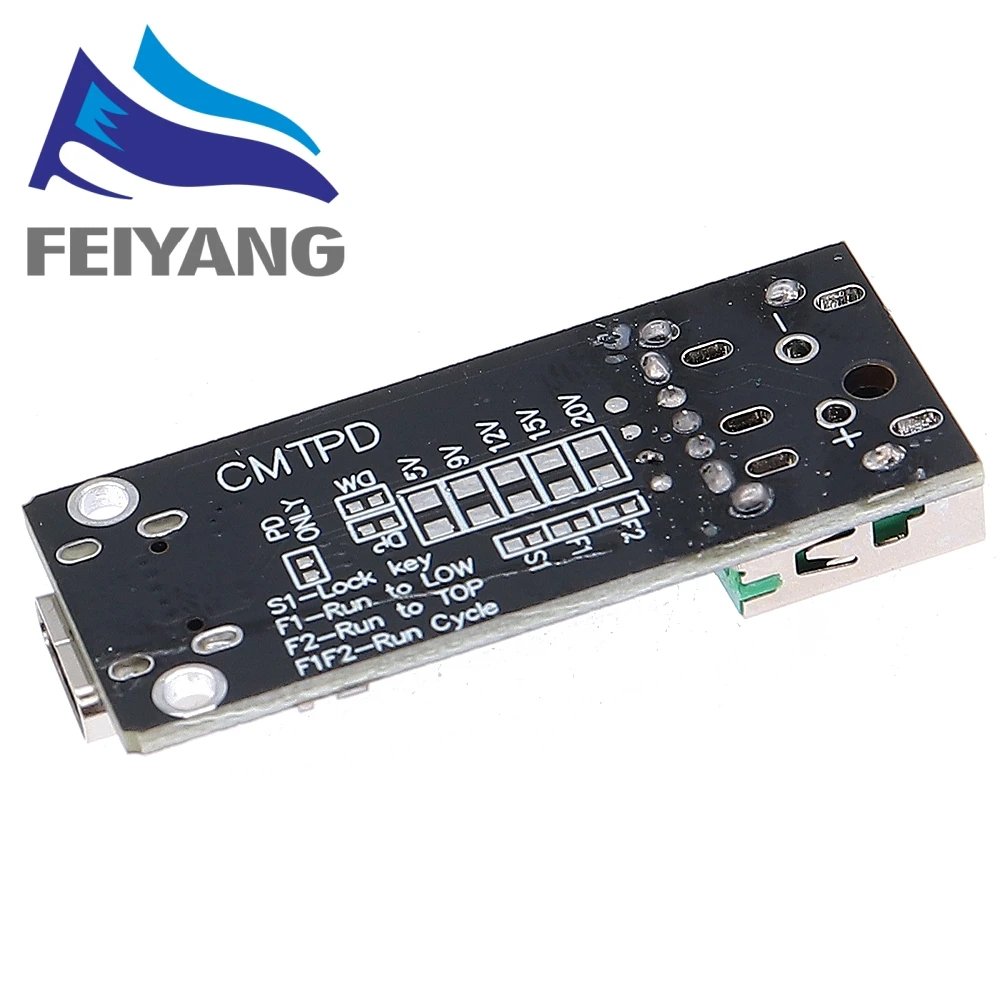

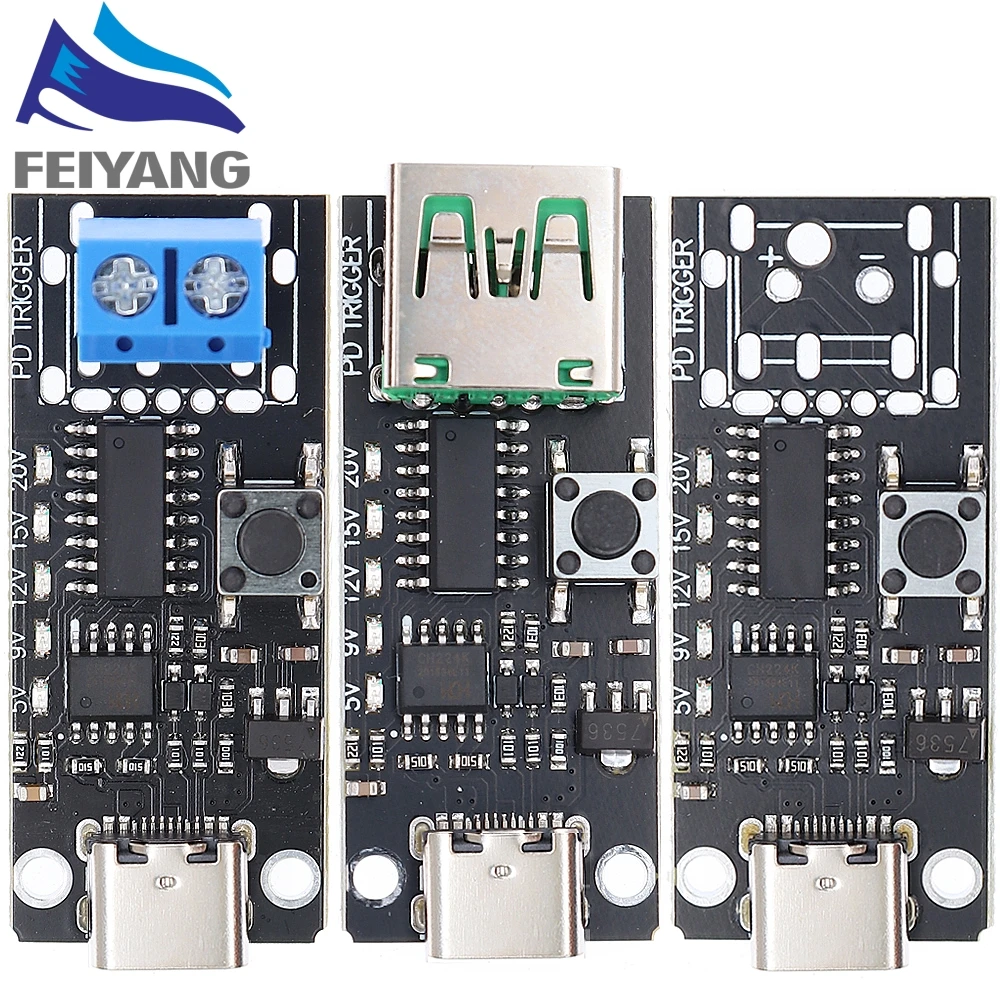

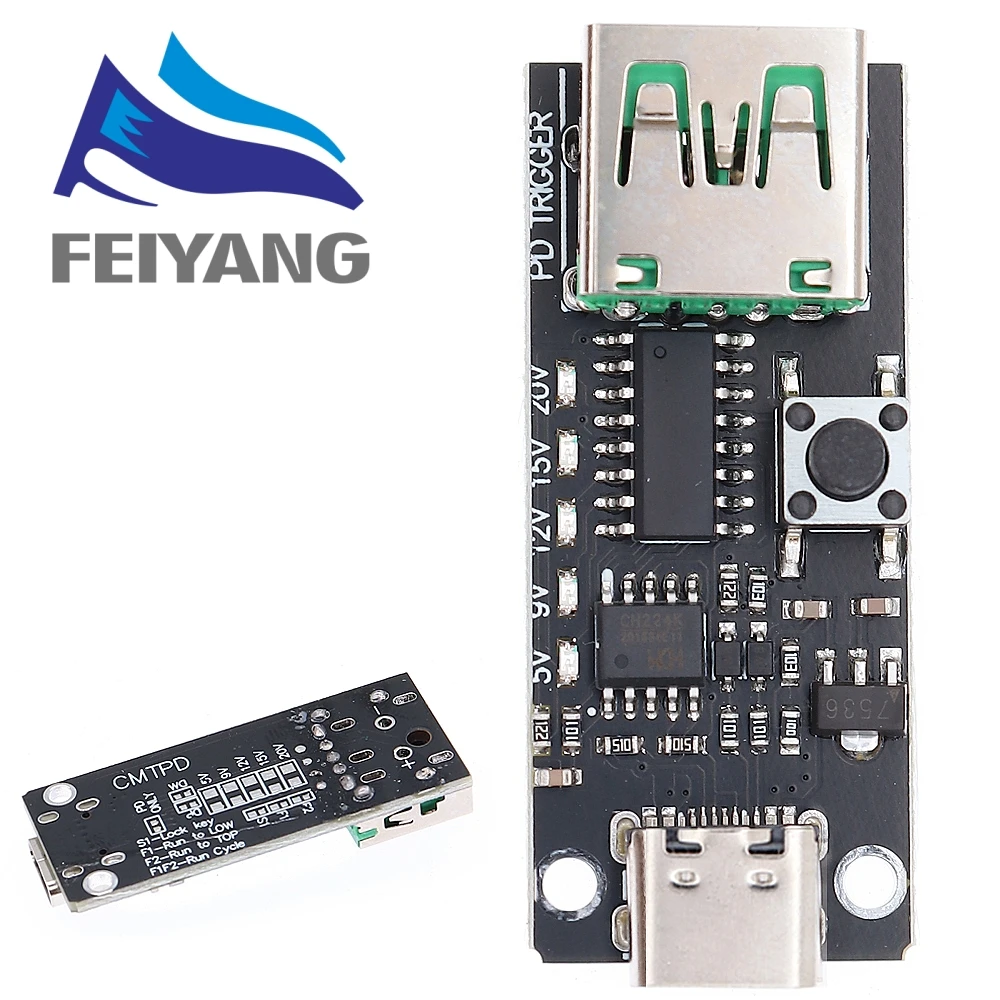

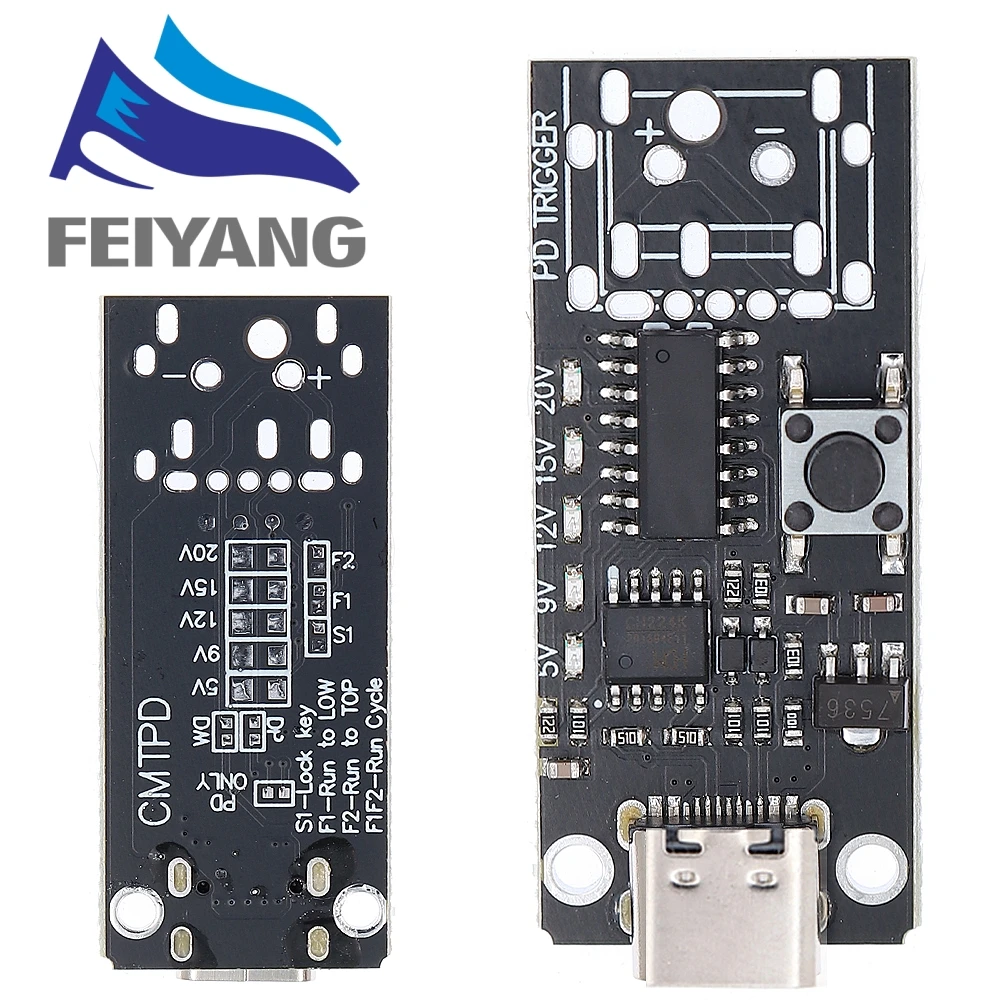

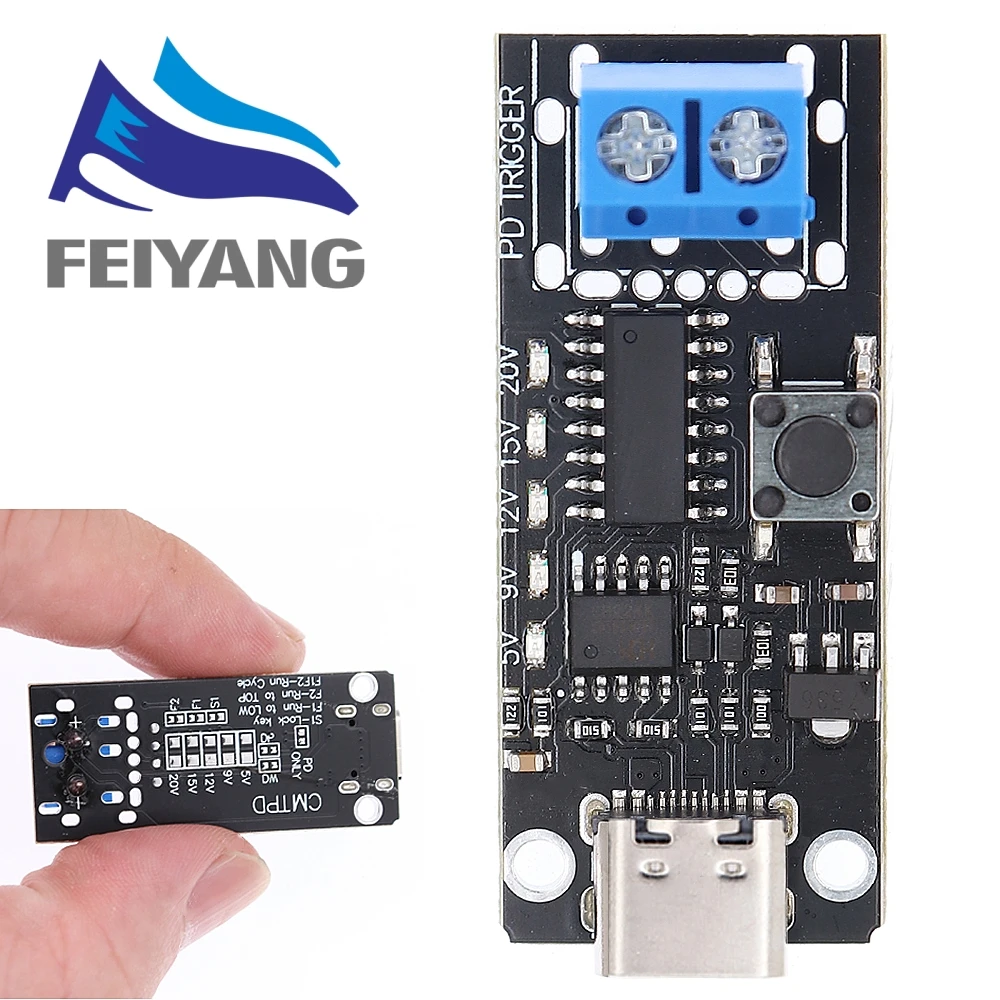

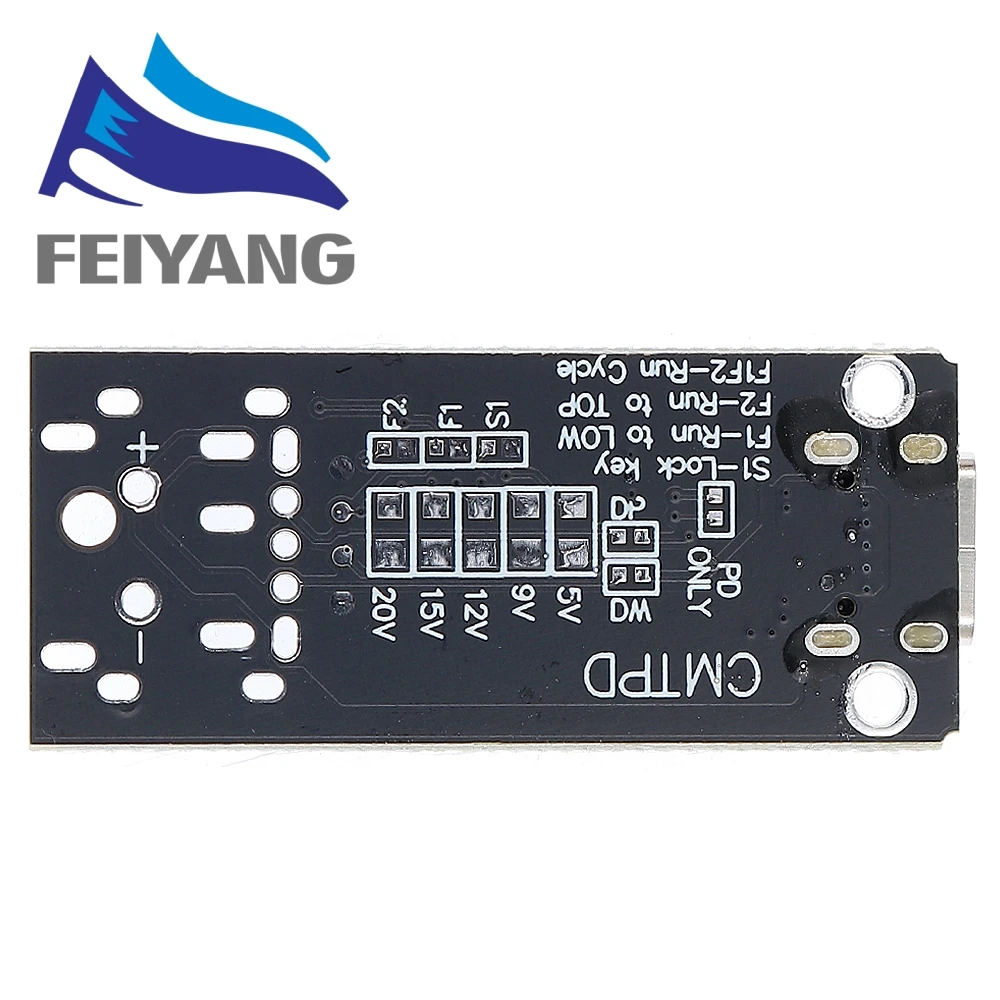

Report Item ● Support PD3.0, PD2.0, QC, FCP, AFC voltage decoy output, free mode Switch. You can also set that only PD is supported. Support 5V/9V/12V/20V decoy output (specific range depends on your power supply). With key lock function, to prevent misoperation (to avoid damaging load equipment by setting voltage wrongly) ● 5V/9V/12V/20V quick setting. LED indicates output. The parameters are saved automatically, and the last deception setting is executed after power on. Ultra low power consumption, high current, supporting 100W output. ● The maximum output is 20V5A (the actual value depends on your power supply). Type-c is solid and durable. Support automatic polling to the highest voltage and keep it, and automatic polling to the highest voltage Then maintain to 5V, infinite loop and other test functions. The test jump time is adjustable. Suitable for aging test, the module can withstand voltage above 30V. Each voltage can be connected externally - one key can be used for quick switching. PD ONLY short circuit contact: the module only supports PD protocol after short circuit. DM and DP short contacts: DM and DP can be output from USB after short circuit, unless required, Short circuit is not recommended. 5 independent key interfaces: 5 independent keys can be connected to quickly switch voltage, which can be short pressed Or long press or short circuit. The upper ends in the figure are all grounded contacts, which are connected together on the circuit. S1 short contact: it is set for key lock. After short connection, the switching voltage needs to be unlocked by pressing Press the key to power on, and re unlock it when power on again. F1 short circuit: power on to automatically poll the highest voltage and then maintain it to 5V. And the LED will display The LED lamp corresponding to the voltage that should be supported is all on, otherwise it is flashing. F2 short circuit: short circuit with F1, but maintain the highest voltage suppo
