ESP8266 Entwicklungsboard NodeMCU Erweiterungsplatine 1,28 Zoll GC9A01 240 x 240 Auflösung kreisförmiges LCD-Display Micro-USB-Schnittstelle

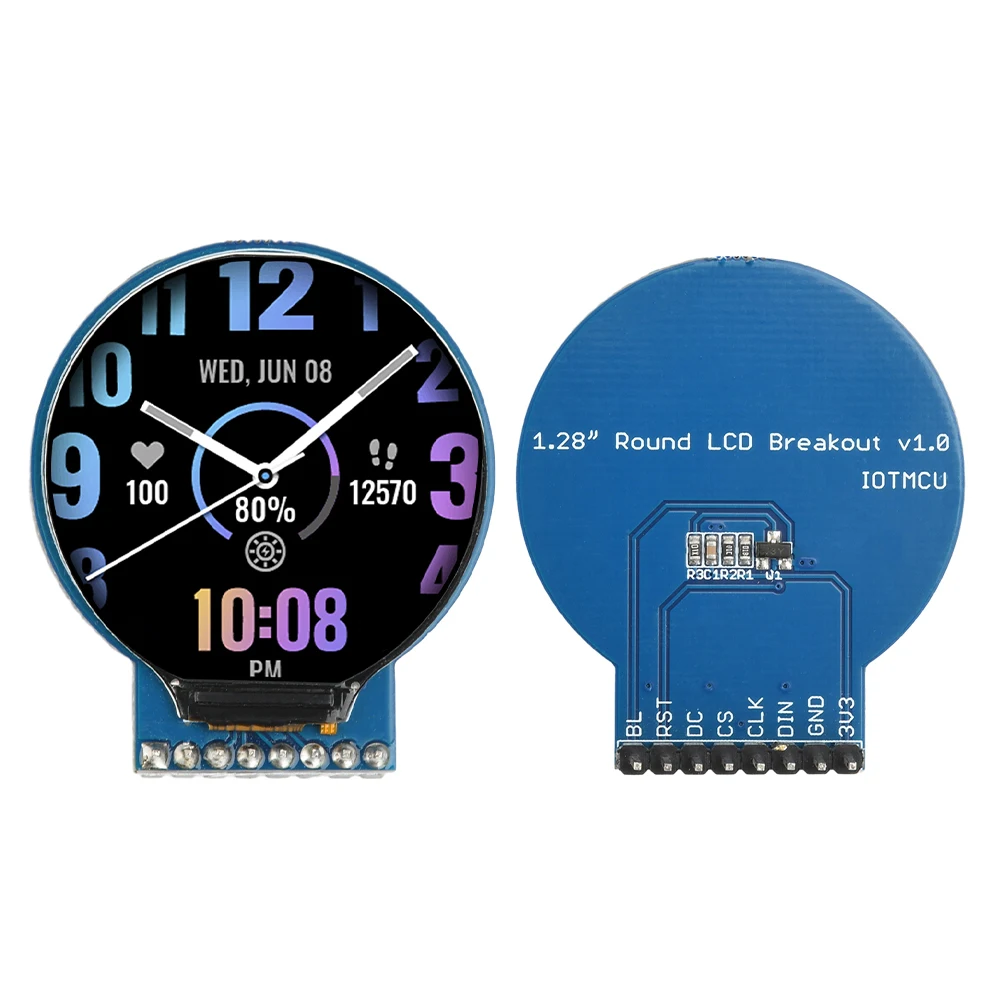

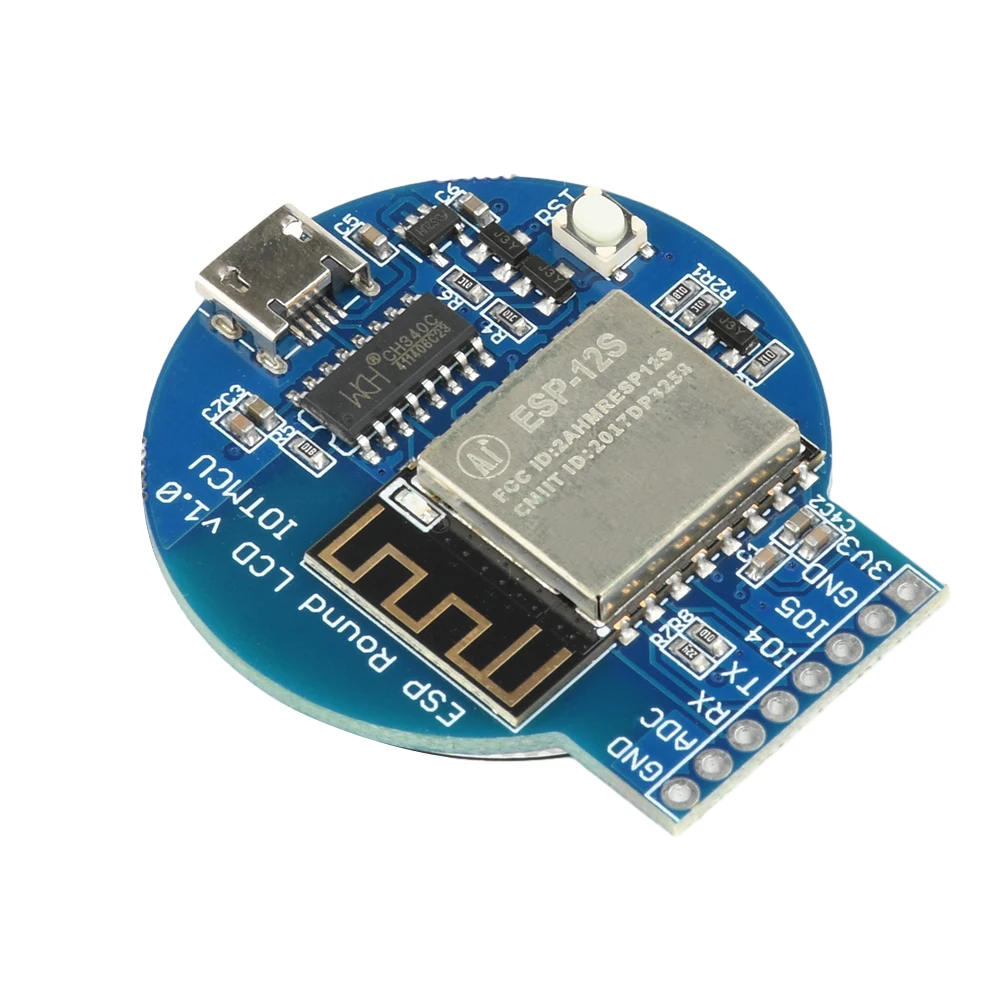

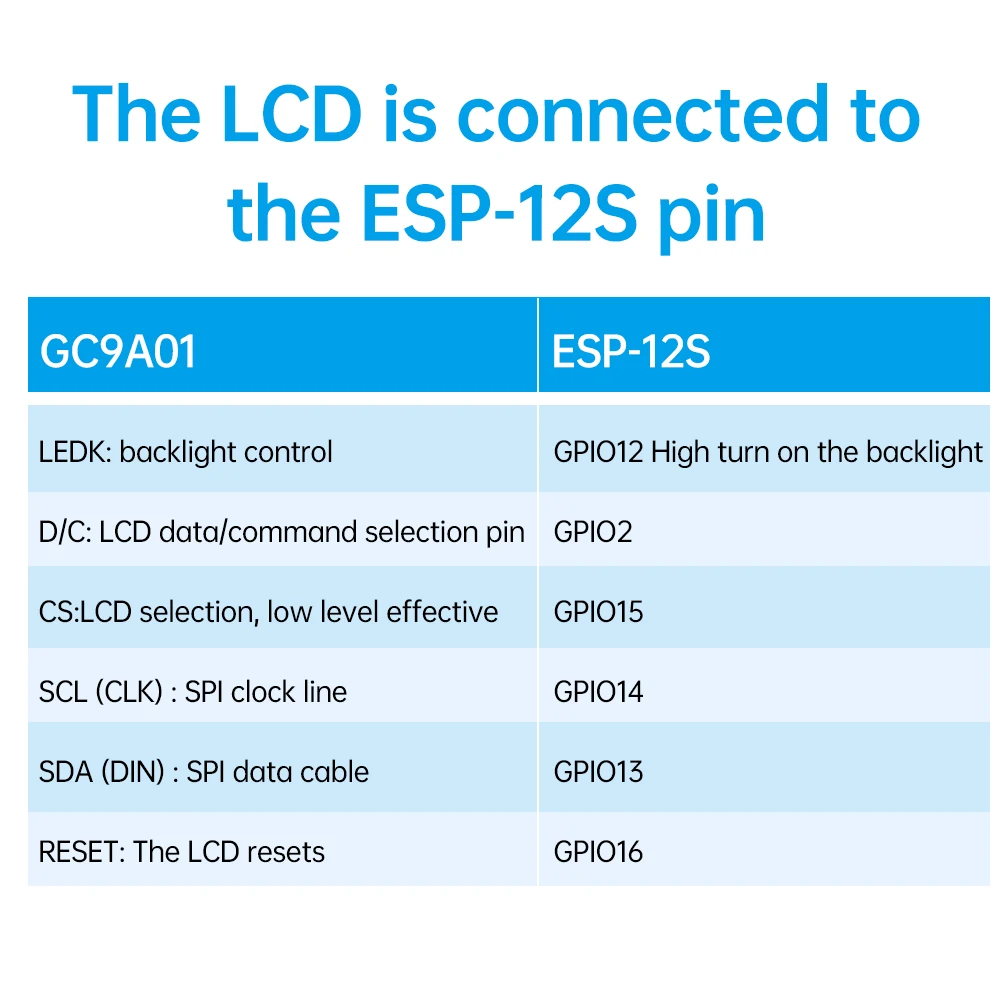

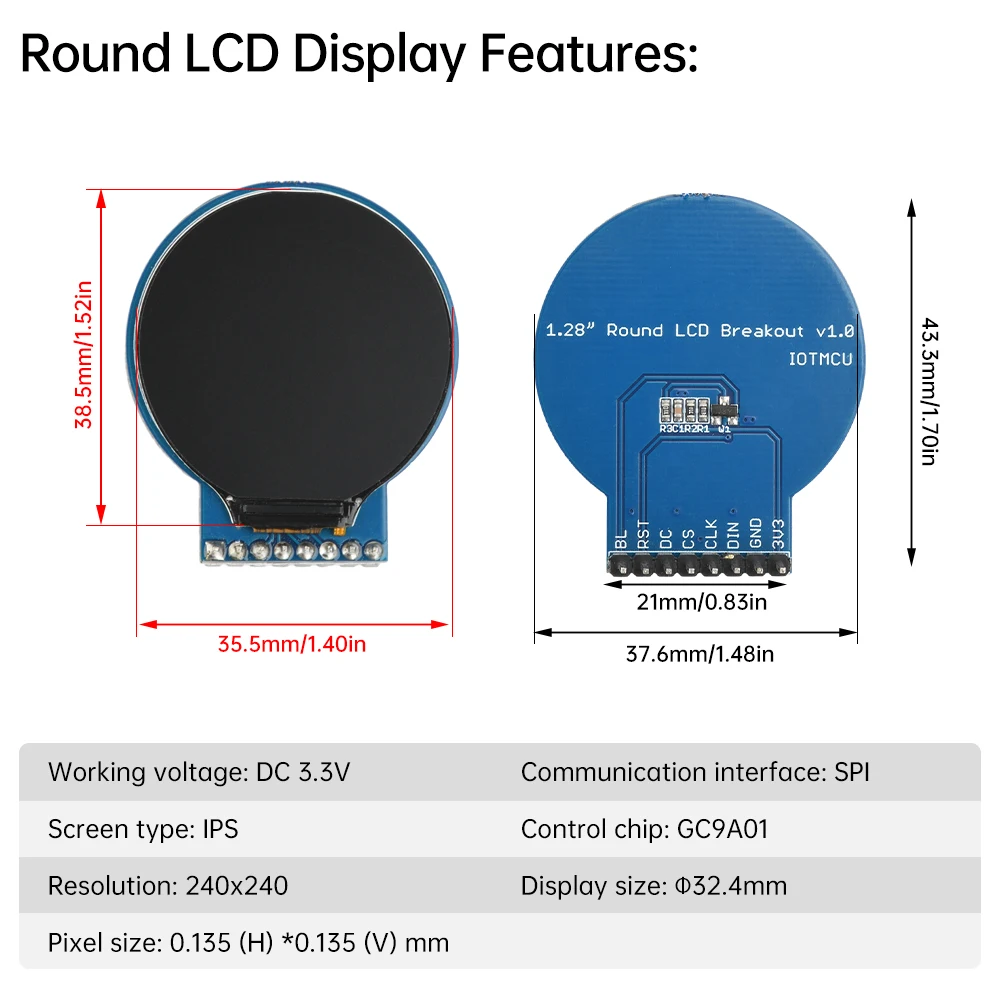

Features: 1.ESP Round LCD is a 1.28-inch round LCD display based on ESP-12S MCU. 2. It is capable of running at 80 or 160MHz with built-in support for 802.11b/g/n WIFI. 3. The screen is a full color display with 240x240 resolution and CG9A01 driver. 4. There are two interface options: USB MicroB or 8-pin pass-through (including male) on the bottom of the screen. 5.ESP Round LCD makes it easy to create color LCD projects on the screen with Arduino support and getting started examples. Parameter: ESP8266： 1.28 inch LCD screen Features: Driver: GC9A01 Resolution: 240x240 Screen Type: 65K RGB Color ESP-12S Features: 802.11b/g/n WIFI Operating voltage: DC 3.3V USB interface: 5V power supply and download program Pin-out interface: GND ADC RX TX GPIO4 GPIO5 GND 3V3 Product size: 44*37*6mm screen： Operating voltage: DC 3.3V Communication interface: SPI Screen type: IPS Control chip: GC9A01 Resolution: 240x240 Display size: Φ32.4mm Pixel size：0.135(H)*0.135(V)mm Product Size：43.3*37.6*6mm Package include: Module*1
