Pico Mini RP2040-Zero Mikrocontroller-Entwicklungs platine für Raspberry PI RP2040 Dual Core RAM Cortex Prozessor Typ-C 1/2PCS

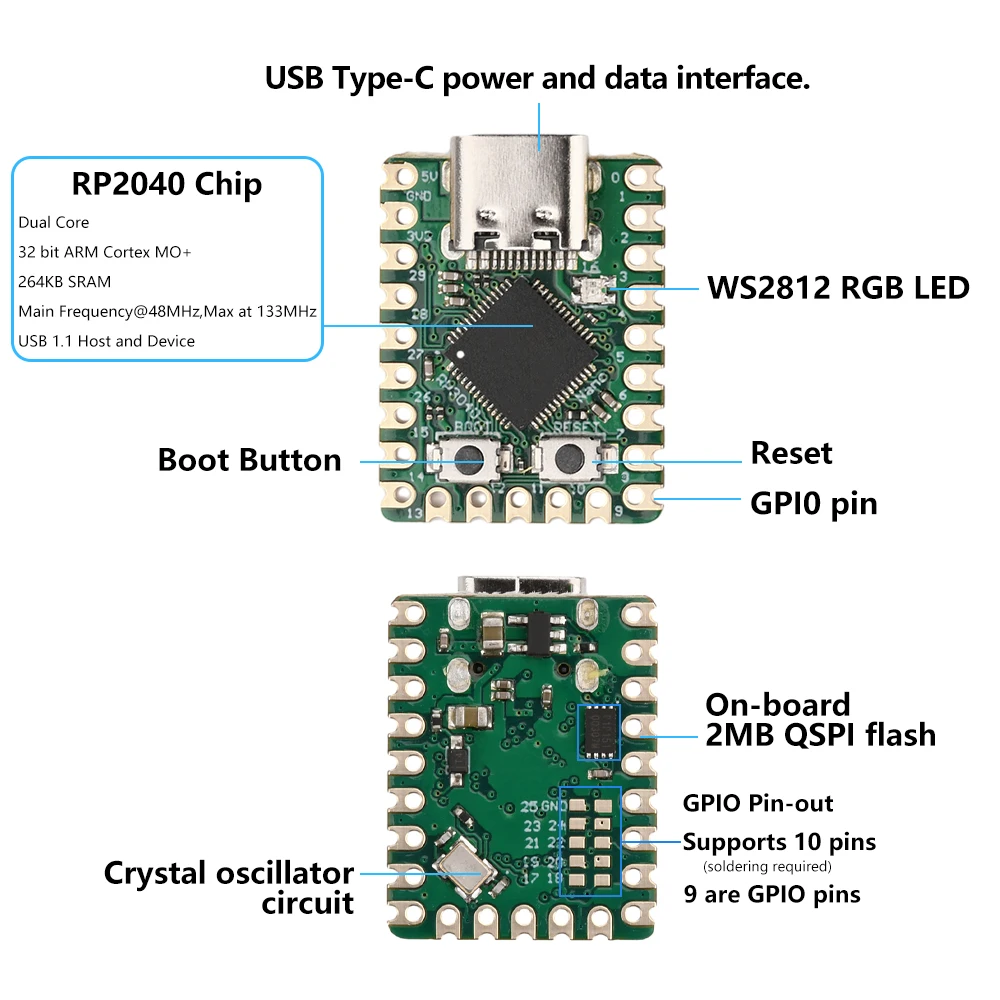

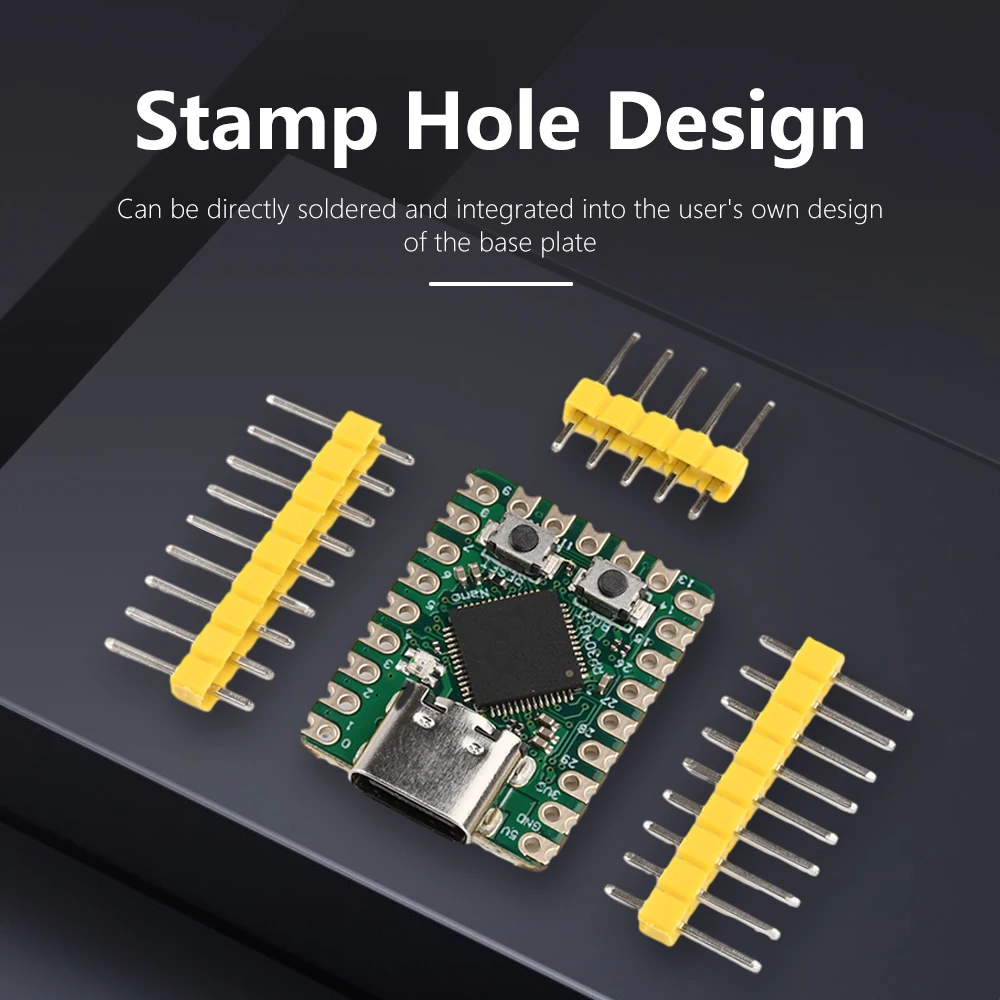

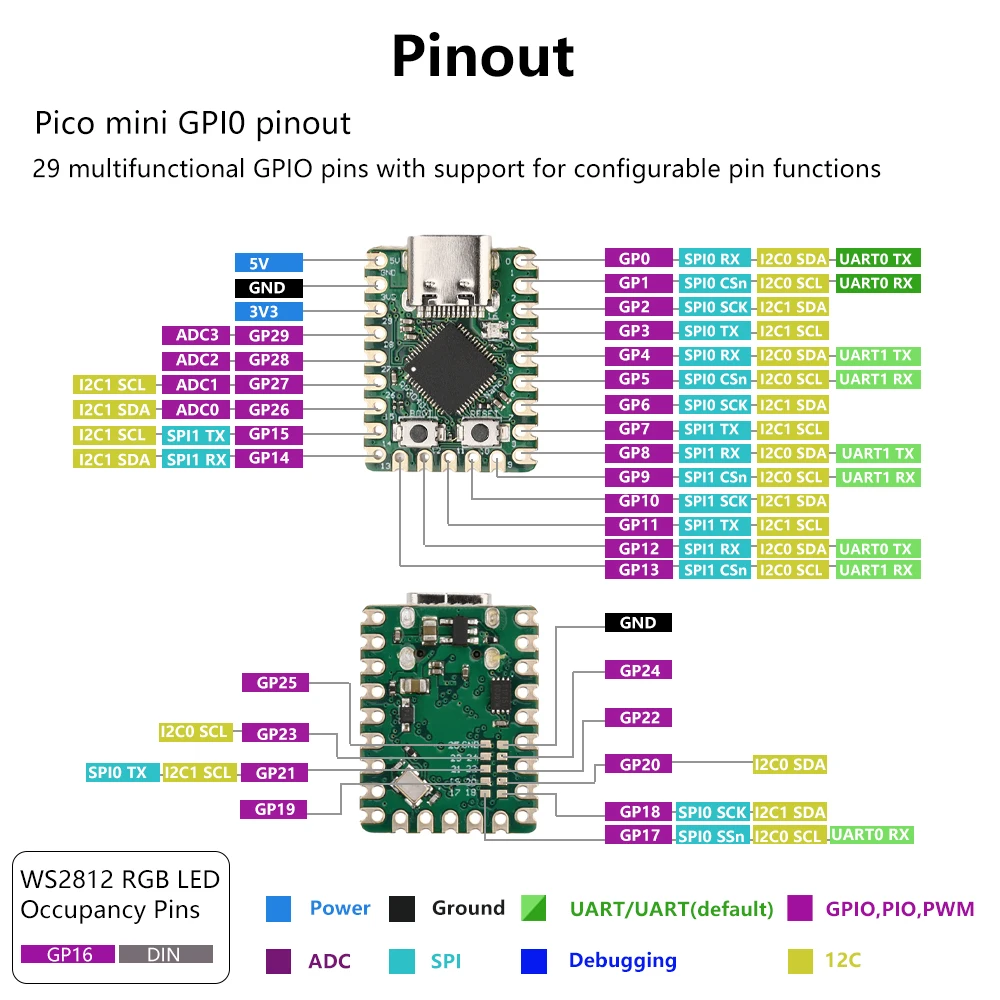

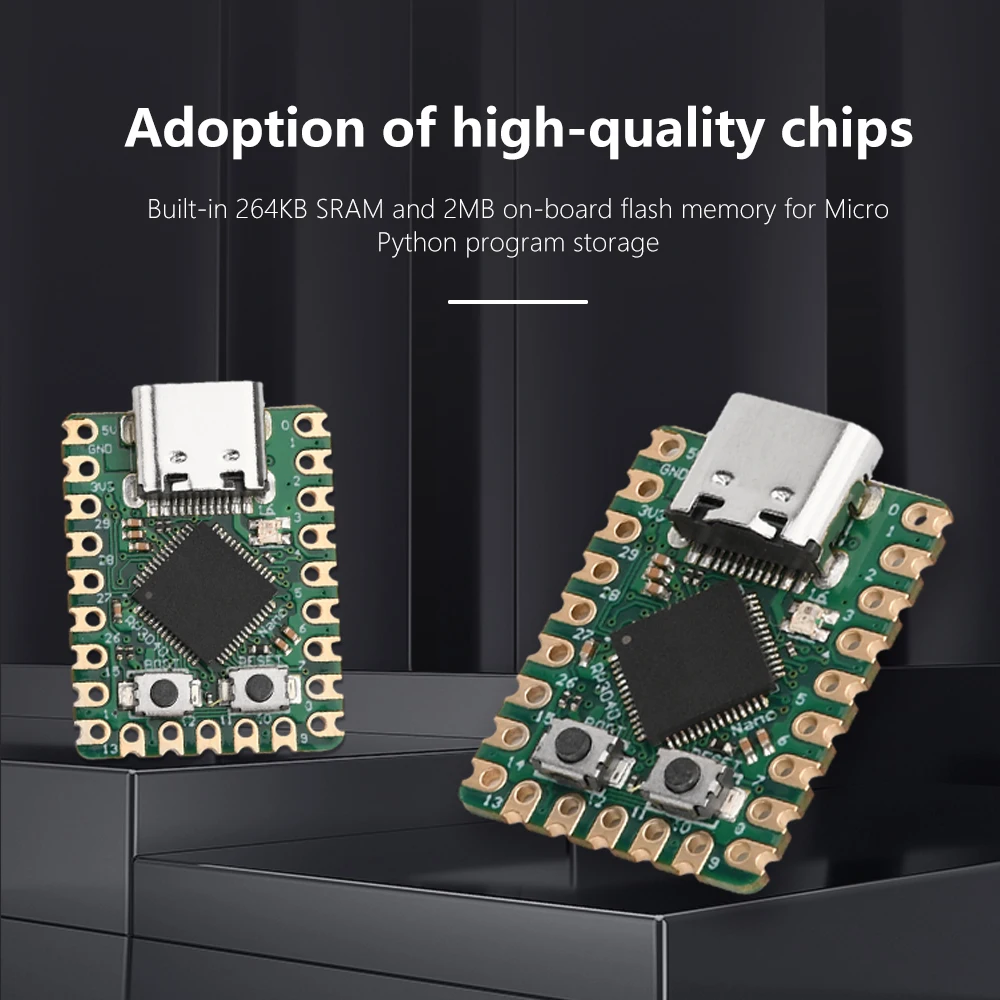

Performance characteristics: 1. Adopting the official RP2040 microcontroller chip from Raspberry Pi 2. Dual core RAM Cortex MO+processor with a clock speed of up to 133MHz 3. The chip is equipped with 264KB SRAM and 2MB onboard flash memory, which can be used for storing Micro Python programs; 4. Stamp hole design, which can be directly welded and integrated into the user's self-designed base plate; 5. USB Type-C host and device support 6. Support low-power sleep and sleep mode 7. 29 GP0 pins are led out (20 can be led out through pin headers, the rest need to be soldered out); 8. 2 * UART, 2 * SP1, 2 * I2C, 4 * 12 bit ADC, 16 * PWM channel; 9. Onboard clock, timer module, and WS2812 light 10. 8 programmable 1/0 (P10) state machines for customizing external device support; 11. Supports USB mass storage boot mode for drag and drop programming 12. on-chip acceleration floating-point library Product parameters: Color: Green Interface: USB Type-C power and data interface Chip: RP2040 dual core chip 32 bit ARM Cortex M0+ 264KB SRAM Main frequency @ 48MHz, Max at 133MHz USB 1.1 Host and Device Size: 23.5mm * 18.2mm Product List: 1X development board 3X needle arrangement
