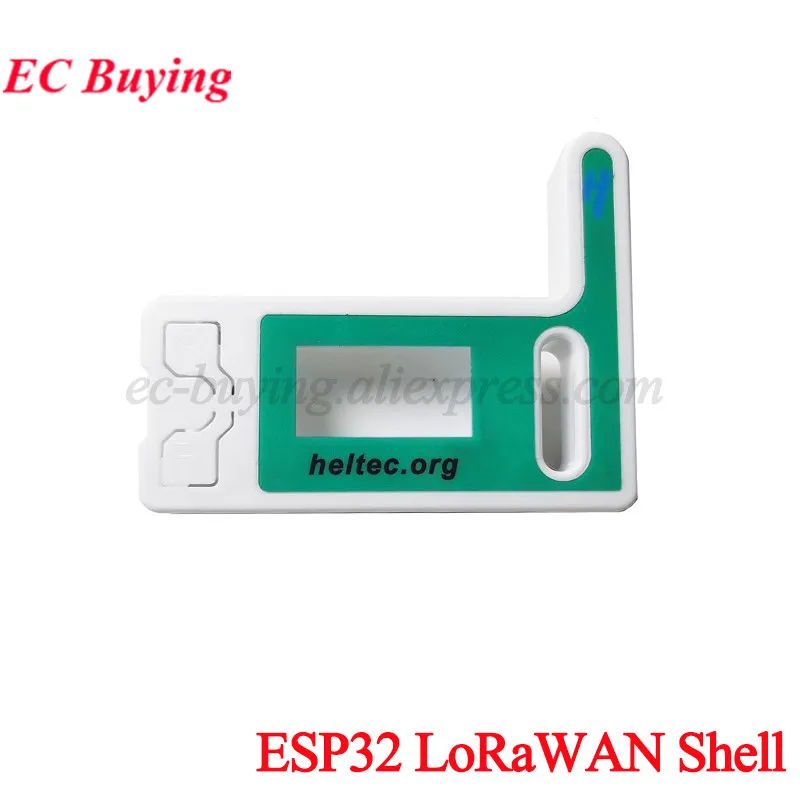

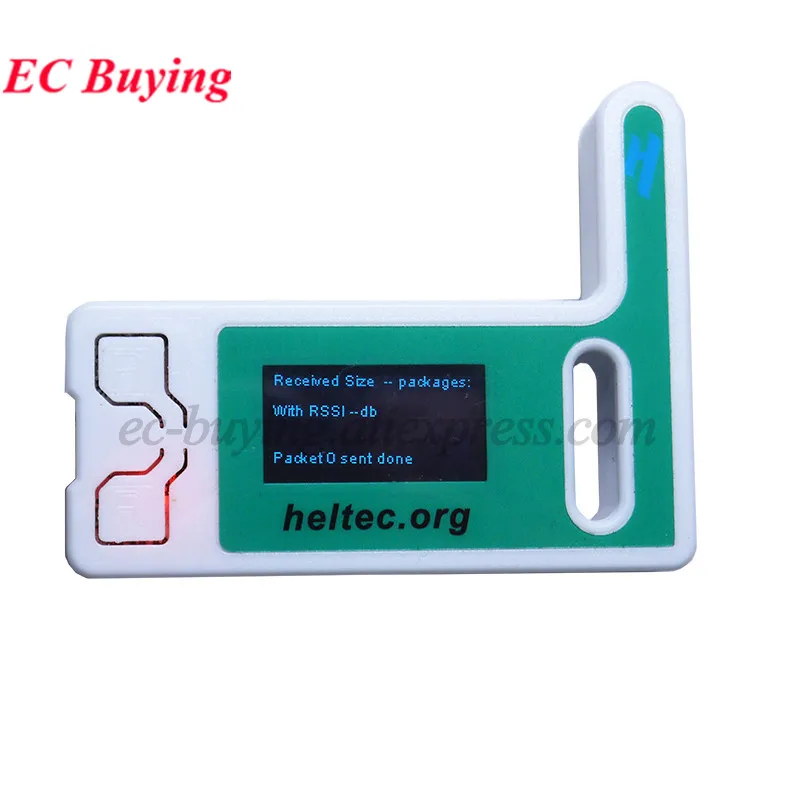

ESP32 SX1262 LoRa 433-510 MHz OLED-Display WIFI-Modul Entwicklungsboard 433 MHz für Arduino LoRaWAN Shell Meshtastic Mesh Network

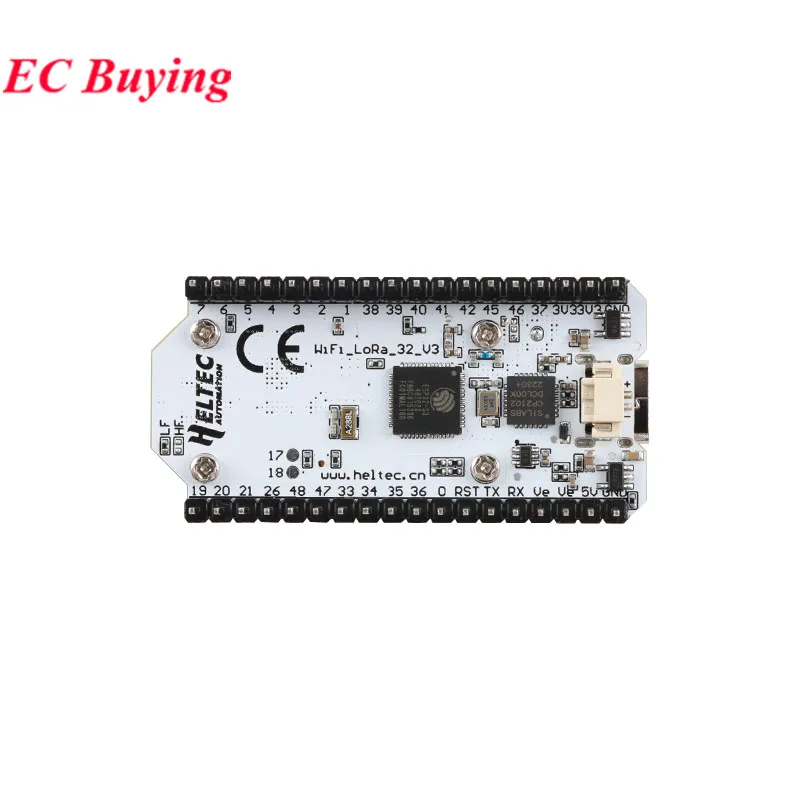

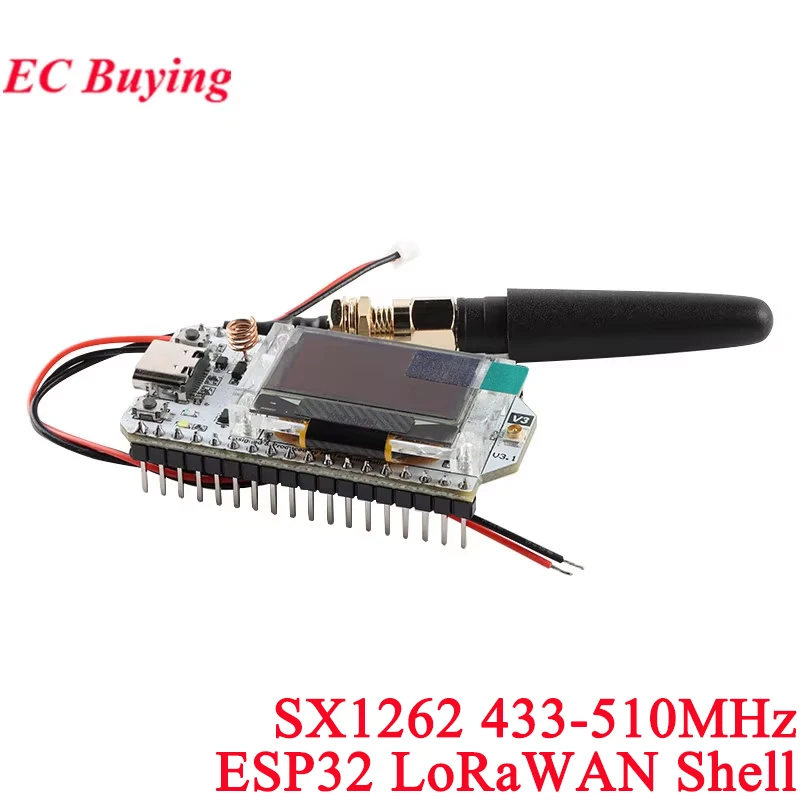

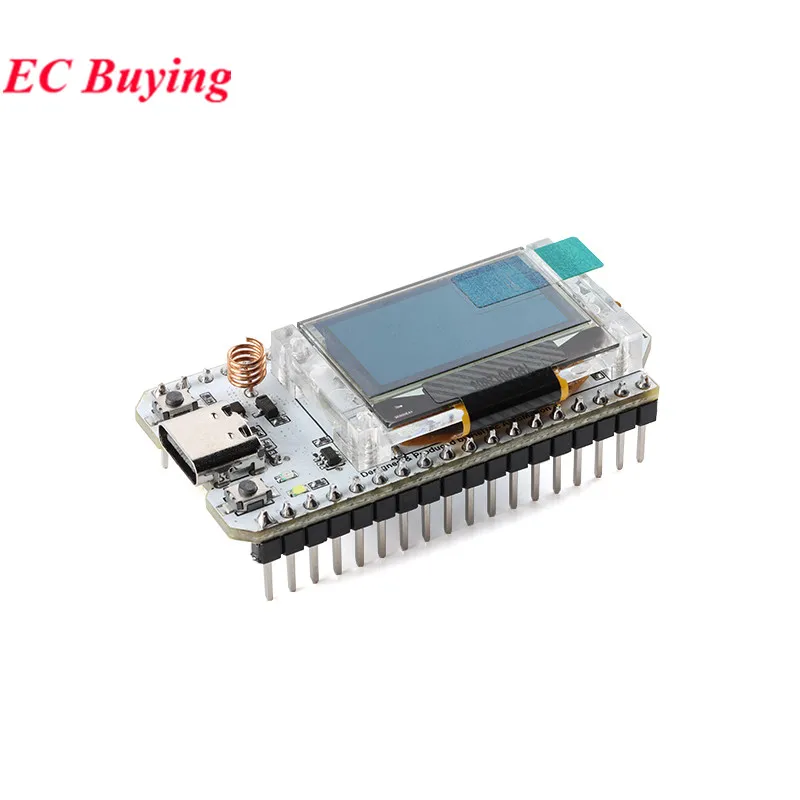

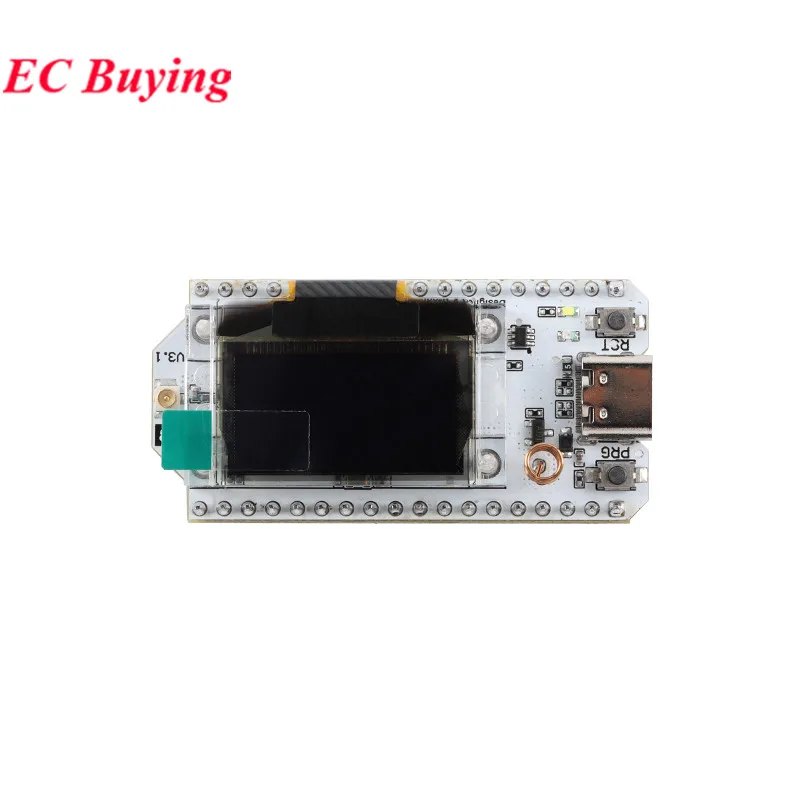

Note: the product picture has been updated. If there is any problem, please leave a message and let us know before placing the order, thank you! Description: WIFI Kit series is the new development of the cost-effective networking program, the main chip using Lexin ESP32, Tensilica LX6 dual-core processor, clocked at 240MHz, computing power up to 600DMIPS, chip built-in 520 KB SRAM, 802.11 b / g / N HT40 Wi-Fi transceiver, baseband, protocol stack and LWIP, integrated dual-mode Bluetooth-compatible (traditional Bluetooth-compatibleand BLE low power Bluetooth-compatible). This product is based on the WIFI Kit 32 chip, that is, LoRa ™ remote modem, 433MHz frequency, about -148dBm high sensitivity, +20 dBm power output, high reliability, transmission distance (measured open area communication distance 2.6Km). Onboard 32MByte Flash, Wi-Fi antenna, 0.96-inch blue OLED display, lithium battery charging circuit and interface, CP2102 USB to serial chip, the perfect support for Arduino development environment, can be very simple and fast for program verification and product development. Operating voltage: 3.3V to 7V Operating temperature range: -40~90 degree Supports Sniffer, Station, softAP and Wi-Fi Direct modes Data rate: 150 Mbps @ 11n HT40,72 Mbps @ 11n HT20,54 Mbps @ 11g, 11 Mbps @ 11b Transmit power: 19.5 dBm @ 11b, 16.5 dBm @ 11g, 15.5 dBm @ 11n Receiver sensitivity up to - 98 dBm UDP continues to throughput by 135 Mbps Onboard WIFI function LoRa send and receive test Onboard lithium battery charge and discharge circuit and interface (battery is not included in the parcel) The product must be used with the IPC interface 433MHz antenna (if not connected to the antenna, may damage the LoRa chip) Perfect support development e
