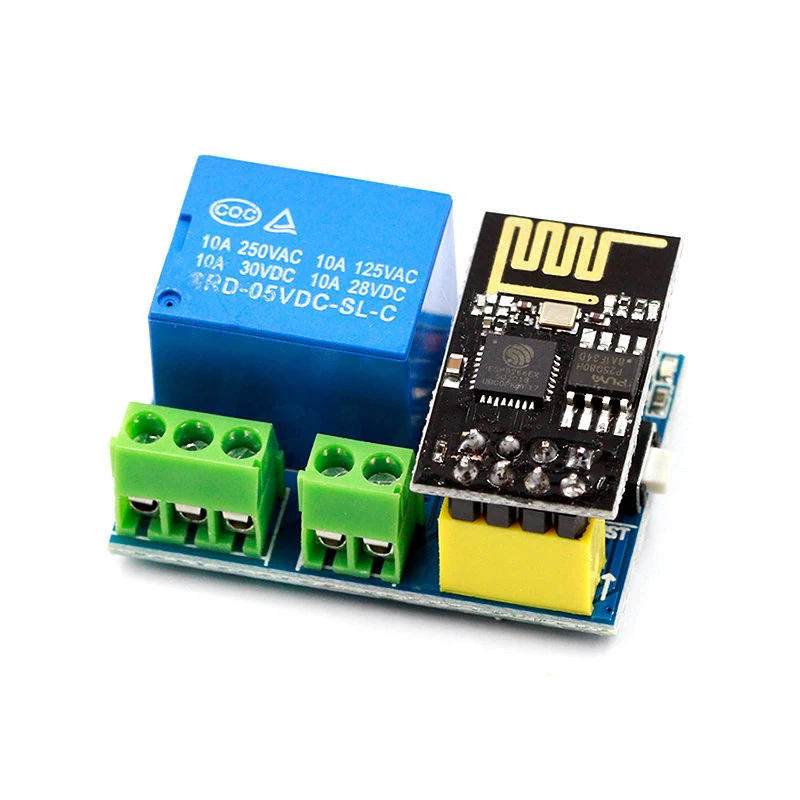

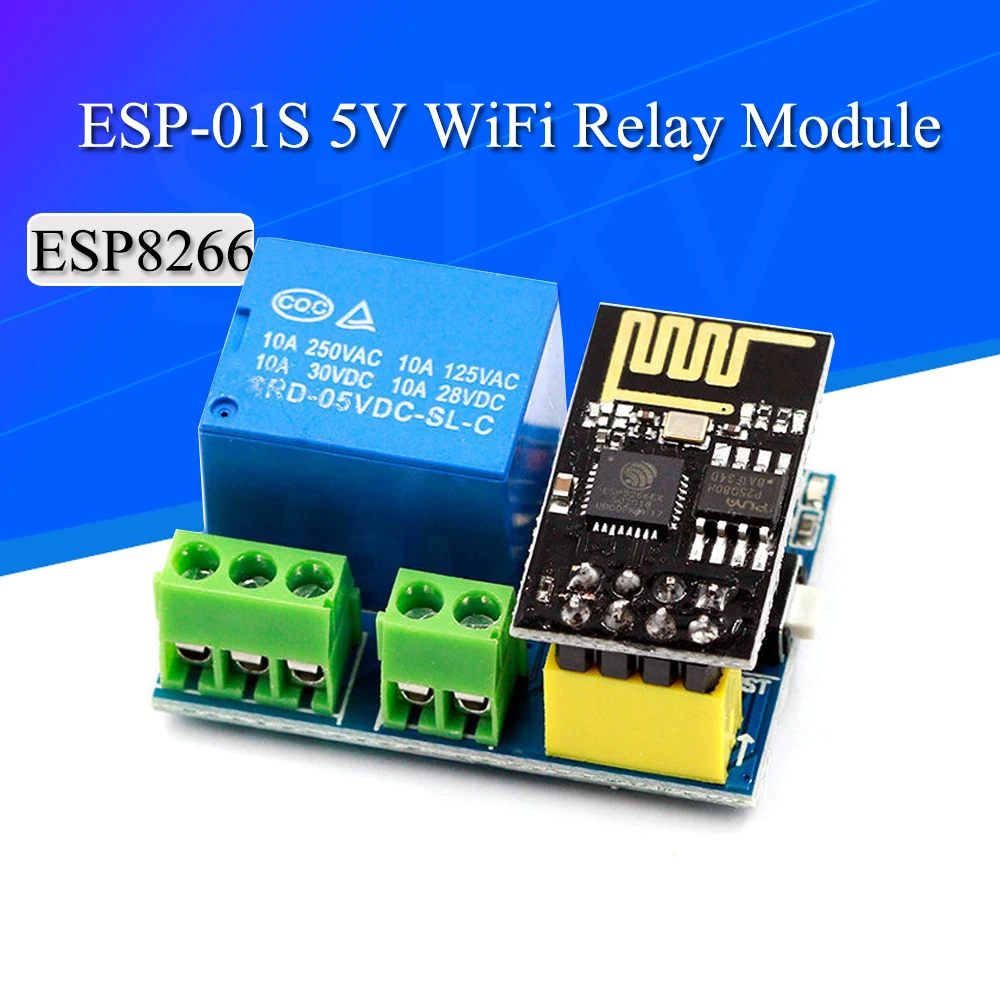

ESP8266 ESP-01S 5V WiFi Relais Modul Dinge Smart Home Fernbedienung Schalter Telefon APP ESP01 ESP-01 Drahtlose WIFI modul

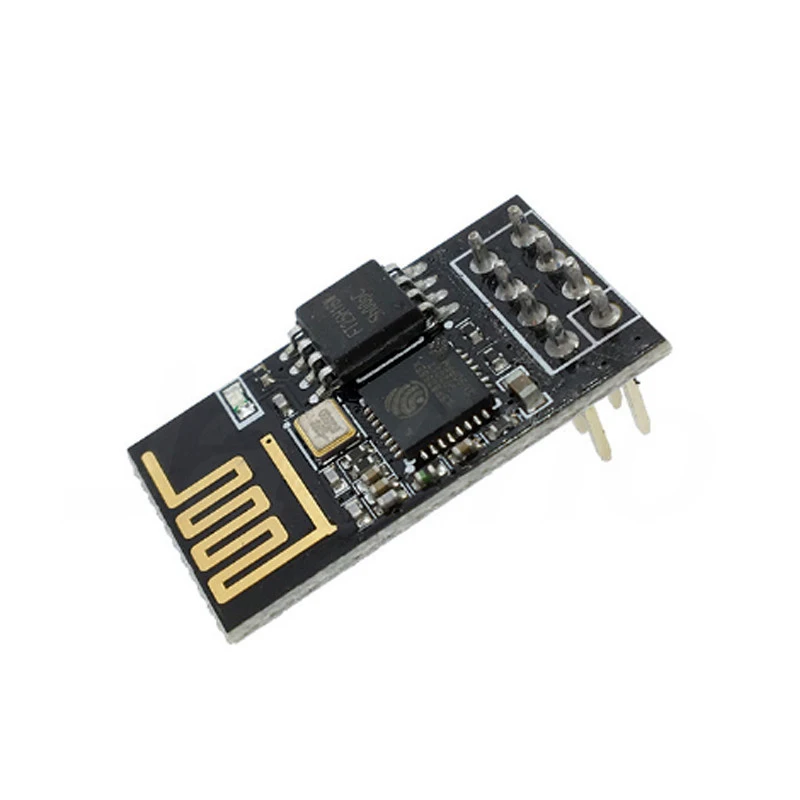

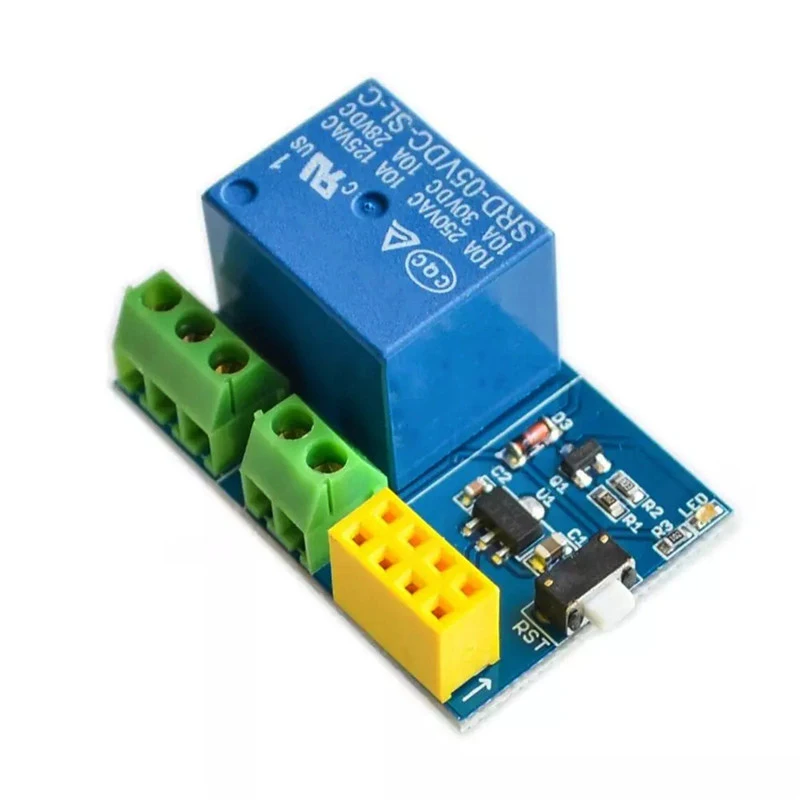

ESP8266 module has a timeout mechanism,when the phone for some time (the default 180S) did not give instructions to the module,the module will kick off the phone,the computer can send AT + CIPSTO = to modify this time (Time range 0-7200),such as: AT + CIPSTO = 3600. When the module on the WIFI module is unplugged,USB to TTL module RX,TX,GND pins were connected to the module RX,TX,GND pin,IN +,IN- 5V power supply,then the module can be used as a USB Relays to use,scalability. Mobile phone equipped with WiFi module; Mobile phone and WiFI module equipped with the same router,through the mobile phone APP to control the relay; this mode,the transmission distance depends on the signal router. Product size: 45 * 28mm Operating voltage: DC5V Communication: WIFI (ESP8266 module) Serial communication parameters: 9600,8,1,0,0 Transmission distance: the maximum transmission distance of 400m (open environment,mobile phone equipped with WIFI module) Load: 10A/250VAC 10A/30VDC,the relay pull 100,000 times
